Leviton ODC0P-S0W Indoor Photocell with 1-1600 FC Light Level, Low Voltage, Delayed Off 10 Min
- MPN: ODC0P-S0W
- UPC: 078477670101
- PPN: LEV-ODC0P-S0W
CAD
$68.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switching Low Voltage Photocell, 1x Setpoint, Delayed Off Time: 10 Min (MFG Range 1-1600FC), Surface Mount - Diffuse Lens, +24VDC Supply, +10VDC Output, Title 24 Compliant, ASHRAE 90.1 Compliant
Features
- Switched lighting at a desired Daylight Design Level offers greater energy savings and comfort while contributing to improved efficiency
- Provides for ultra-convenient, hands-free lighting control
- Lowers electric bills by reducing usage of lighting where ambient and/or artificial lights are also present
- Measures light from any source in the visible spectrum within a 60º cone at 8-12 feet mounting height
- Provides continual measurements and reports back to Switching Power Pack or Controller

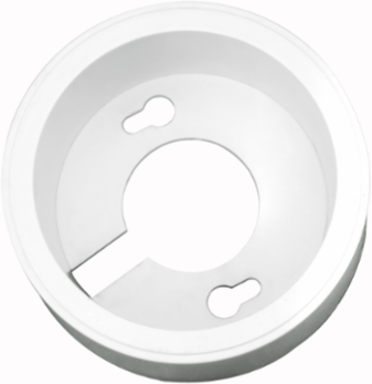

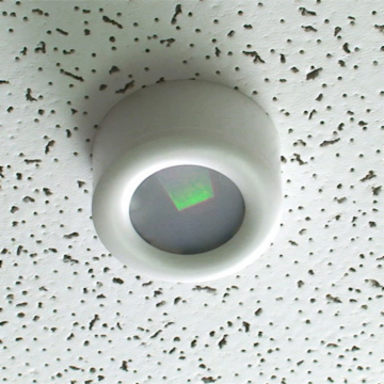

- Mounts on ceiling - surface mount or low profile flush mount
- Auto-calibration for ease of configuration
- LED status indicators for ease of installation
- Leviton’s ODC0P-S0W Switching Photocell is a sensor for precisely monitoring either task or ambient light levels. As a part of Leviton’s lighting system , the ODC0P-S0W works with other components to automatically set and adjust target light levels.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Listing | NOM |
|---|
Product Features
| Product Line | Photocell |
|---|
| Product Type | Indoor Photocell |
|---|
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Color | White |
|---|---|
| Operating Temperature | 0°C to 55°C |
| Foot Candle Level | 1-1,600 FC (10-16,000 LUX) |
|---|---|
| Relative Humidity | 20% to 90% non-condensing |
Electrical Specifications
| Input Voltage | 12 - 24VDC |
|---|---|
| Relative Humidity | 20% to 90% non-condensing |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Voltage Type | Low Voltage |
