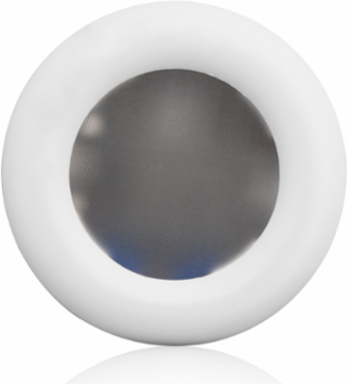

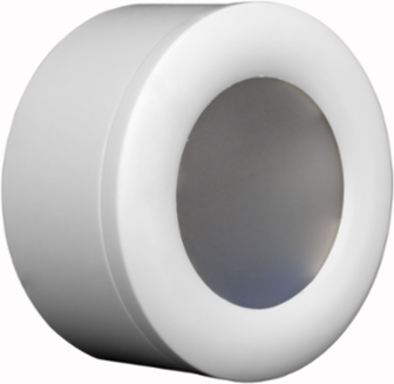

Leviton ODC0P-D0W Indoor Photocell Controller, 12-24VDC, Dimming 1-1600FC, UL 916 Listed
- MPN: ODC0P-D0W
- UPC: 078477705070
- PPN: LEV-ODC0P-D0W
CAD
$193.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Dimming Low Voltage Photocell, Set/Off, Fade Rate: 3 Min, 1-1600FC, 1-10VDC Sink, Surface Mount - Diffuse Lens. +24VDC Supply, +10VDC Output, Title 24 Compliant, ASHRAE 90.1 Compliant
Features
- Dimmed lighting at a desired daylight design level offers greater energy savings and comfort and improved energy efficiency
- Leviton-exclusive, patented Auto-Calibration™ eliminates the need for configuring labor costs during daylight harvesting configuration
- Industry-exclusive fail-safe circuitry: in the event of product failure, return-to-closed feature causes the relay to default to ON which eliminates life safety concerns

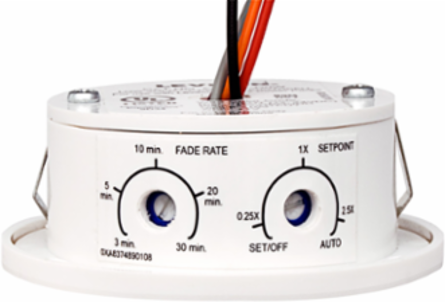

- Fade rate time setting 3-30 minutes
- Controls 1-10V sinking ballast
- No additional power supply required for 1-10V sinking operation
- Dim to OFF — over DDL for 30 seconds then lights OFF
- Test Mode — 30 second fade rate for 15 minutes then auto exit
- Provides ultra-convenient, hands-free lighting control
- Measures light from any source in the visible spectrum within a 60º cone at 8-12’ mounting height
- Provides continual measurements to control the lighting
- Photocell sensor Mounts on ceiling — surface mount or low-profile flush mount
- LED status indicators for ease of installation
- The Leviton ODC0P-D0W is an interior low voltage photocell capable of continually dimming between 1-10VDC based on the amount of natural light contribution. It is a lowpower, high-sensitivity mini-daylight harvesting system for precise monitoring of either task or ambient light levels.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| FCC | Compliant |
|---|
| Standards and Certifications | UL 916 Listed |
|---|
Performance Specifications
| FCC | Compliant |
|---|---|
| Standards and Certifications | UL 916 Listed |
| Foot Candle Level | 1-1,600 FC (10-16,000 LUX) |
|---|
Product Features
| Product Line | Photocell |
|---|
| Product Type | Indoor Photocell |
|---|
Environmental Specifications
| Foot Candle Level | 1-1,600 FC (10-16,000 LUX) |
|---|---|
| Relative Humidity | 20% to 90% non-condensing |
| Operating Temperature | 0°C to 55°C |
|---|
Electrical Specifications
| Input Voltage | 12 - 24VDC |
|---|
| Voltage Type | Low Voltage |
|---|
