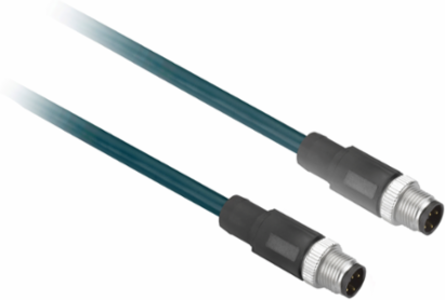

Telemecanique Sensors XZCR1511041C2 jumper cable - male M12 - 4-pin straight - female M12 - 4-pin straight - cable2m
- MPN: XZCR1511041C2
- PPN: TES-XZCR1511041C2
- UNSPSC: 39121528
CAD
$83.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XZ range, an offer of cabling accessories. This jumper cable with 4-pin M12 male to 4-pin M12 female straight connector features screw-on technology. It has a 5000mOhm maximum resistance across terminals and ≥1000MOhm insulation resistance. It is jumper cable with a rated operational voltage of 250V AC, 300V DC and a rated current of 4A. It is an IP65, IP67 and IP69K rated product. It weighs 0.095kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CULus. The range of machine wiring connectors and cordsets has been designed for optimal user-friendliness, simplifying connection and providing quick and safe reference identification. Improved connection of sensors to the enclosure.
Documentation & Downloads
Specifications
Key Specifications
| Accessory / Separate Part Category | cabling accessory |
|---|
| Accessory / Separate Part Type | jumper cable |
|---|
Complementary
| Wire Insulation Material | PUR |
|---|---|
| Maximum Resistance Across Terminals | 5000 mOhm |
| Cable Length | 2 m |
| Net Weight | 0.095 kg |
| Cable Outer Diameter | 5.2 mm |
| Cable Composition | 4 x 0.34 mm² |
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
|---|---|
| Insulation Resistance | >= 1000 MOhm |
| Jumper Cable End 1 | M12 male 4 pins straight screw-on |
| Jumper Cable End 2 | M12 female 4 pins straight screw-on |
| Line Rated Current | 4 A |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -35-100 °C |
| Ambient Air Temperature For Operation | -35-90 °C static || -5-90 °C flexing |
|---|---|
| Ip Degree Of Protection | IP65 || IP69K || IP67 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1308015 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1308015EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
