Telemecanique Sensors XZCRV1511041C2 Jumper cable XZ, male straight M12 4 pin, female straight M12 4 pin, PVC 2 m
- MPN: XZCRV1511041C2
- PPN: TES-XZCRV1511041C2
CAD
$33.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

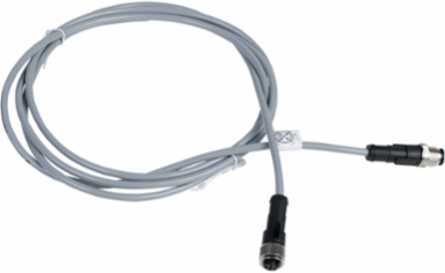

Jumper cable XZ, male straight M12 4 pin, female straight M12 4 pin, PVC 2 m
Documentation & Downloads
Specifications
Key Specifications
| Accessory / Separate Part Category | cabling accessory |
|---|
| Accessory / Separate Part Type | jumper cable |
|---|
Complementary
| Collar Material | metal |
|---|---|
| Cable Outer Diameter | 4.6 mm |
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
| Insulation Resistance | >= 1000 MOhm |
| [In] Rated Current | 3 A |
| Jumper Cable End 1 | M12 male 4 pins straight screw-on |
| Jumper Cable End 2 | M12 female 4 pins straight screw-on |
|---|---|
| Wire Insulation Material | PVC |
| Maximum Resistance Across Terminals | 5000 mOhm |
| Cable Length | 2 m |
| Cable Composition | 4 x 0.25 mm² |
| Net Weight | 0.11 kg |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -25-80 °C |
| Ambient Air Temperature For Operation | -25-80 °C static |
|---|---|
| Ip Degree Of Protection | IP65 || IP67 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
