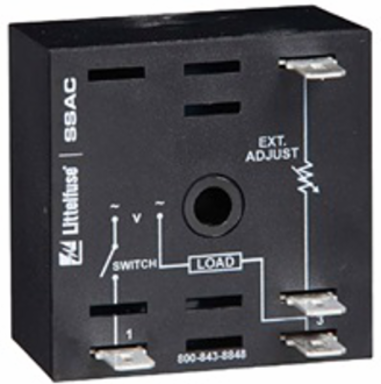

Littelfuse PHS230A10 PHS230A10 - PHS Series
- MPN: PHS230A10
- UPC: 079458997842
- PPN: LTF-PHS230A10
CAD
$88.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation Upon application of input voltage, effective output voltage can be varied by changing the external resistance value. As the external resistance increases, the effective output voltage decreases. The inverse is also true.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 230VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Minimum Output Load Current (A) | 100mA |
| Insulation Resistance | ≥100 MΩ |
| Adjustment Type | External adjustment potentiometer; 200kΩrated at 2W |
| Mounting Method | Surface mount with one #10 (M5 x 0.8) screw |
| Storage Temperature (F/C) | -40° to 85°C (-40°F to 185°F) |
| Dimensions | 2.00 x 2.00 x 1.51 in. (50.8 x 50.8 x 38.4mm) |
| Input Tolerance (%) | ±20% |
|---|---|
| Output Voltage Drop (V) | ≅2.0V at rated current |
| Output Load Rating (VA) | Steady state (100% on): 10A; Inrush: 100A |
| Dielectric Breakdown | ≥2000V RMS terminals to mounting surface |
| Termination Type | 0.25 in. (6.35mm) male quick connect terminals |
| Operating Temperature | -20° to 60°C (-4°F to 140°F) |
| Humidity | 95% relative non-condensing |
| Weight (lbs/g) | ≅3.9 oz (111g) |
