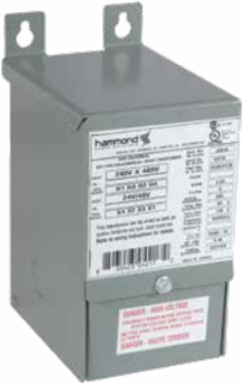

Hammond Power Solutions Q1C0ESCB BUCK BOOST POTTED 1PH 1PH 1KVA 120/240-16/32 CU
- MPN: Q1C0ESCB
- UPC: 803423033859
- PPN: HPS-Q1C0ESCB
CAD
$587.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BUCK BOOST POTTED 1PH 1PH 1KVA 120/240-16/32 CU
Features
- Engineered as a highly efficient buck-boost transformer, this unit reliably corrects chronic line voltage drops or surges ranging from 5% to 25% above or below nominal levels. By seamlessly stepping your 120/240V primary supply to a stable 16/32V secondary voltage, it prevents the costly, premature equipment failure of sensitive HVAC motors, industrial lighting, and resistive heating loads.
- Constructed with computer-designed, premium copper windings rather than standard aluminum, this 1kVA single-phase transformer delivers superior electrical conductivity and significantly lower operating temperatures. This high-efficiency core minimizes long-term energy loss and easily manages continuous inductive draws, ensuring your heavy machinery runs smoothly without triggering annoying thermal overloads.
- Fully potted and housed within a heavy-duty NEMA 3R-rated cabinet, the internal electrical components are completely sealed in an electrical-grade silica sand and resin compound. This ruggedized, weather-resistant design shields the vital components from rain, ice, and airborne industrial dust, allowing for safe, vibration-free wall mounting in harsh outdoor environments or demanding factory floors.
- Meeting the electrical distribution industry's most rigorous safety standards, this buck-boost transformer is fully UL Listed and CSA Certified for North American commercial installations. Relying on factory-tested, code-compliant power hardware guarantees a seamless sign-off from local inspectors and provides peace of mind that your facility's operational liability insurance remains fully intact.
Documentation & Downloads
Specifications
Additional
- Power Rating
- 1 kVA
- Frequency
- 50/60 Hz
- Input Voltage
- 120/240 V
- Mounting
- Wall Mount
- Weight
- 25 lbs
- Winding Material
- Copper
- Enclosure Finish
- ANSI 61 Grey
PhaseSingle Phase
Insulation Temperature Rise80°C rise (130°C insulation)
Output Voltage16/32 V
Dimensions5.88 x 5.19 x 10.56 in
Enclosure TypeHeavy duty encapsulated type 3R
IsolationNo (Autotransformer)
