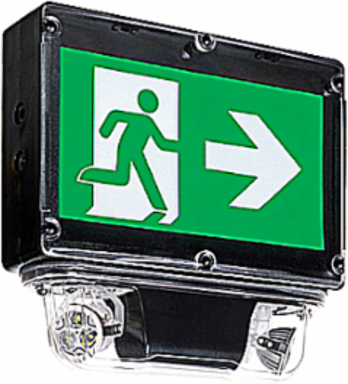

Thomas & Betts ENC1W12N60LJNEXRF Pictogram Combination Unit, 12-5/8 Inch x 14 Inch, 60W, NEMA-4X
- MPN: ENC1W12N60LJNEXRF
- UPC: 782683533029
- PPN: T-B-ENC1W12N60LJNEXRF
CAD
$1861.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pictogram Combination Unit, single face, universal mount, Arrows/Chevron Direction: standard film, Colour: factory white, 120/347VAC, NEXUS wireless system interface, Unit Type: NEMA-4X and NSF, Battery Type: nickel-cadmium, Battery Wattage: 60W, Voltage DC: 12V, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, self-powered, Head Style: shielded, Battery Run Time (Minimum): 30 minutes
Features
- Certified NSF for use in food processing areas
- Sealed, vandal-resistant faceplate of polycarbonate/split Legend illuminated by long-life white LED’s
- Comes standard with two pictogram films per face, for direction selection
- 4-Watt LED emergency lights provide 30 - 36 feet of egress illumination on a 6-foot wide path
- Remote load capacity: covers with 4-Watt LED lights 100 feet up to 230 feet of egress illumination
- Comes standard with auto-diagnostic
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Industrial, Commercial
- Wattage
- 60W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Legend
- On
- Material
- Polyvinyl / Aluminum
- Color
- Factory white
IGCC3938 Combo light unit exit
TypePictogram Combination Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
BatteryNickel-Cadmium
Number Of Lamps2
Size12-5/8 Inches Height x 14 Inches Width
MountingUniversal
Lamp Wattage6W
Packaging
- Outer Quantity
- 1
- Weight Uom
- 14 lbs. Each
Outer Dimensions (inches)1x1x1
