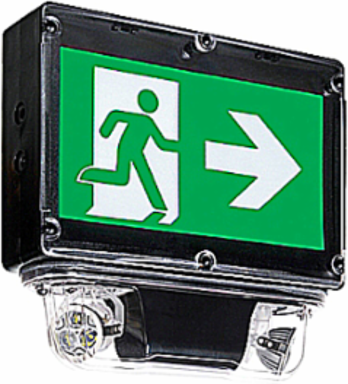

Lumacell LNC1W12N60LD10ZC Pictogram Combination Unit

MPN: LNC1W12N60LD10ZC
UPC: 062461632800
PPN: T-B-LNC1W12N60LD10ZC

$2050.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pictogram Combination Unit, Unit Type: NEMA-4X & NSF, Battery Type: nickel-cadmium, Voltage DC: 12V, Battery Wattage: 60W, single face, universal mount, Colour: factory white, 120/277VAC, auto-diagnostics, non-audible, Head Style: shielded, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Battery Run Time: 30 minutes

Features

Sealed, vandal-resistant faceplate of polycarbonate
Legend illuminated by long-life white LED’s is warrantied for 10 years
Comes standard with two pictogram films per face, for direction selection
Two high-performance MR16 lamps shielded by a clear polycarbonate cover
Remote load capacity: covers with 4W LED lights 100 feet up to 230 feet of egress illumination

Specifications

North American Specifications (UNSPSC)

UNSPSC	39111707 Combo light unit exit
Brand Name	Lumacell
Application	Institutional, Industrial, Hospitality
Wattage	60W
Battery Runtime	30 minutes
Lamp Type	MR16 LED
Legend	On
Material	Frame: Polyvinyl chloride / Faceplate: Polycarbonate
Color	Factory white

IGCC	3938 Combo light unit exit
Type	Pictogram Combination Unit
Standard	CSA
Voltage Rating	120/277VAC, 12VDC
Battery	Nickel-cadmium
Number Of Lamps	2
Size	12-5/8 Inches Height x 14 Inches Width
Mounting	Universal
Lamp Wattage	6W
