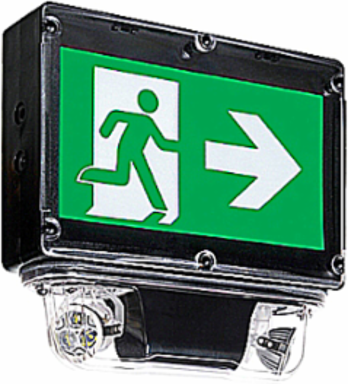

Lumacell LNC1B6N36LD1ATCW Pictogram Combination Unit
- MPN: LNC1B6N36LD1ATCW
- UPC: 624616333781
- PPN: T-B-LNC1B6N36LD1ATCW
CAD
$2425.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pictogram Combination Unit, Unit Type: NEMA-4X & NSF, Battery Type: nickel-cadmium, Voltage DC: 6V, Battery Wattage: 36W, single face, universal mount, Colour: black, 120/347VAC, auto-diagnostics, audible, cold-weather -40°C , Head Style: shielded, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Battery Run Time: 30 minutes
Features
- Sealed, vandal-resistant faceplate of polycarbonate
- Legend illuminated by long-life white LED’s is warrantied for 10 years
- Comes standard with two pictogram films per face, for direction selection
- Two high-performance MR16 lamps shielded by a clear polycarbonate cover
- Remote load capacity: covers with 4W LED lights 100 feet up to 230 feet of egress illumination
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 11 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
European Specifications (ETIM)
| ETIM | EC001957 Emergency luminaire |
|---|---|
| Lamp power | 4W |
| Colour housing | Black |
| Voltage type | AC/DC |
| Width | 357mm |
| Lamp type | LED exchangeable |
|---|---|
| Material housing | Other |
| Battery quality | NiCd |
| Nominal voltage | 120-347V |
| Height/depth | 321mm |
North American Specifications (UNSPSC)
| UNSPSC | 39111707 Combo light unit exit |
|---|---|
| Brand Name | Lumacell |
| Application | Institutional, Industrial, Hospitality |
| Wattage | 36W |
| Battery Runtime | 30 minutes |
| Lamp Type | MR16 LED |
| Legend | On |
| Material | Frame: Polyvinyl chloride / Faceplate: Polycarbonate |
| Environmental Conditions | Cold weather -40 degree C (-40 degree F) |
| Lamp Wattage | 4W |
| IGCC | 3938 Combo light unit exit |
|---|---|
| Type | Pictogram Combination Unit |
| Standard | CSA |
| Voltage Rating | 120/347VAC, 6VDC |
| Battery | Nickel-cadmium |
| Number Of Lamps | 2 |
| Size | 12-5/8 Inches Height x 14 Inches Width |
| Mounting | Universal |
| Color | Black |
