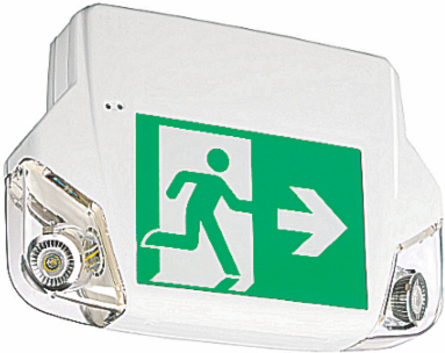

Lumacell 12H5GRAP12LD10W3ATVR Pictogram Combination Unit
Lumacell 12H5GRAP12LD10W3ATVR Pictogram Combination Unit
- MPN: 12H5GRAP12LD10W3ATVR
- PPN: T-B-12H5GRAP12LD10W3ATVR
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$988.17/ EA
Description
Pictogram Combination Unit, single face ceiling or wall mount, Colour: factory white, 120/347VAC, auto-diagnostics, audible, polycarbonate shield with tamper-proof screws, Battery Type: NiMH, Voltage DC: 12V, Battery Wattage: 50W, self-powered, Head Style: shielded, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Battery Run Time: 30 minutes, with canopy, polycarbonate shield with tamper-proof screws
Features
- One-pack combination of battery unit and Pictogram Sign, a compact and contemporary design
- Supplied standard with two (single face) or three pictogram films (universal face) for direction selection
- Twin LED lights provide up to 89 feet of egress illumination on a 6-foot wide path
- Long-life white LED light sources is warrantied for ten (10) years
- Remote load capacity: one unit equipment with LED remote lights covers up to 712 feet (217m) of egress illumination
- Remote load capacity: one unit equipment with LED
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Lumacell
- Application
- Institutional, Industrial, Hospitality
- Wattage
- 50W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Legend
- On
- Material
- Frame/Faceplate: Thermoplastic
- Color
- Factory white
IGCC3938 Combo light unit exit
TypePictogram Combination Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
BatteryNiMH
Number Of Lamps2
Size12-3/8 Inches Height x 17 Inches Width
MountingCeiling or wall
Lamp Wattage6W
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 6W
- Colour housing
- White
- Voltage type
- AC/DC
- Width
- 432mm
Lamp typeLED exchangeable
Material housingPlastic
Battery qualityNiMH
Nominal voltage120-347V
Height/depth315mm
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 8 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
