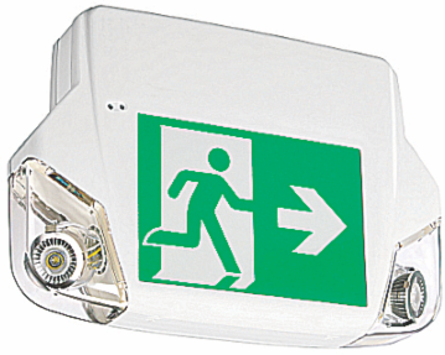

Ready-Lite L50-2LD1-ULTP12W Pictogram Combination Unit, 12-3/8 Inch Height x 17 Inch Width, 50W, 6V DC
- MPN: L50-2LD1-ULTP12W
- UPC: 624050091230
- PPN: T-B-L50-2LD1-ULTP12W
CAD
$638.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pictogram Combination Unit, Battery Type: lead-calcium, single face ceiling or wall mount, 120/277VAC, Voltage DC: 6V, Battery Wattage: 50W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Colour: factory white, auto-diagnostics, non-audible, Head Style: shielded, Battery Run Time: 30 minutes
Features
- One-pack combination of battery unit and Pictogram Sign, a compact and contemporary design
- Supplied standard with two (single face) or three pictogram films (universal face) for direction selection
- Remote load capacity: one unit equipment with LED remote lights covers up to 712 feet (217m) of egress illumination
- Remote load capacity up to 92W when using LED lamp option
- Comes standard with non-audible auto-diagnostics
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 10 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Ready-Lite
- Application
- Institutional, Industrial, Hospitality
- Wattage
- 50W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Legend
- On
- Material
- Frame/Faceplate: Thermoplastic
- Color
- Factory White
IGCC3938 Combo light unit exit
TypePictogram Combination Unit
StandardCSA
Voltage Rating120V/277VAC, 6VDC
BatteryLead-calcium
Number Of Lamps2
Size12-3/8 Inches Height x 17 Inches Width
MountingWall or ceiling
Lamp Wattage4W
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Material housing
- Plastic
- Monitoring equipment
- Automatic self test
- Voltage type
- AC/DC
- Width
- 432mm
Lamp power4W
Colour housingWhite
Battery qualityLead
Nominal voltage120-277V
Height/depth315mm
