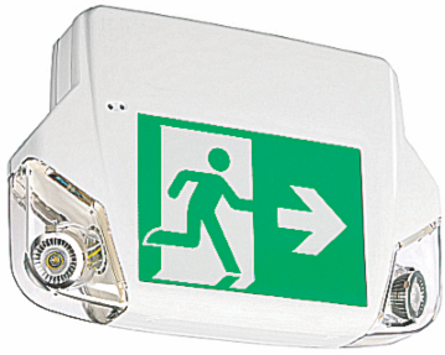

Ready-Lite L20-2LD1-ULTP13W Pictogram Combination Unit 12-3/8 Inch Height x 17 Inch Width, 25W, MR16 LED
- MPN: L20-2LD1-ULTP13W
- UPC: 624050090677
- PPN: T-B-L20-2LD1-ULTP13W
CAD
$546.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pictogram Combination Unit, Battery Type: lead-calcium, single face ceiling or wall mount, 120/347VAC, Voltage DC: 6V, Battery Wattage: 25W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Colour: factory white, auto-diagnostics, non-audible, Head Style: shielded, Battery Run Time: 30 minutes
Features
- One-pack combination of battery unit and Pictogram Sign, a compact and contemporary design
- Supplied standard with two (single face) or three pictogram films (universal face) for direction selection
- Remote load capacity: one unit equipment with LED remote lights covers up to 712 feet (217m) of egress illumination
- Remote load capacity up to 92W when using LED lamp option
- Comes standard with non-audible auto-diagnostics
Specifications
European Specifications (ETIM)
| ETIM | EC001957 Emergency luminaire |
|---|---|
| Material housing | Plastic |
| Monitoring equipment | Automatic self test |
| Voltage type | AC/DC |
| Width | 432mm |
| Lamp power | 4W |
|---|---|
| Colour housing | White |
| Battery quality | Lead |
| Nominal voltage | 120-347V |
| Height/depth | 315mm |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 4 |
| Weight Uom | 9 lbs. Each |
| Inner Dimensions (inches) | 1x1x.1 |
|---|---|
| Outer Dimensions (inches) | 1x1x1 |
North American Specifications (UNSPSC)
| UNSPSC | 39111707 Combo light unit exit |
|---|---|
| Brand Name | Ready-Lite |
| Application | Institutional, Industrial, Hospitality |
| Wattage | 25W |
| Battery Runtime | 30 minutes |
| Lamp Type | MR16 LED |
| Legend | On |
| Material | Frame/Faceplate: Thermoplastic |
| Color | Factory White |
| IGCC | 3938 Combo light unit exit |
|---|---|
| Type | Pictogram Combination Unit |
| Standard | CSA |
| Voltage Rating | 120V/347VAC, 6VDC |
| Battery | Lead-calcium |
| Number Of Lamps | 2 |
| Size | 12-3/8 Inches Height x 17 Inches Width |
| Mounting | Wall or ceiling |
| Lamp Wattage | 4W |
