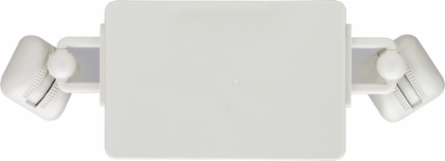

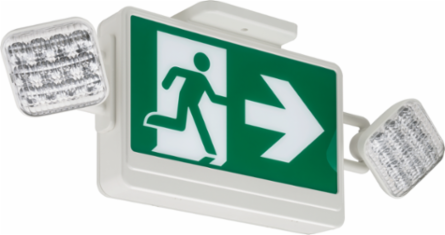

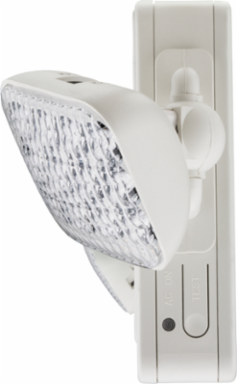

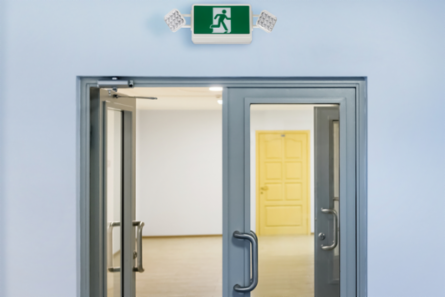

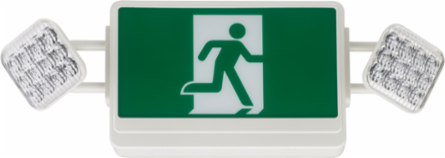

Acuity Brands ECRM W M6 Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/d51290c9db382f15216b745ad9754f79fde80eeb-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/0f56b8bd603d70e3bccfc7cb17ebc5182825c1d6-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/66819639ff5bd9c0961594f6b5a6f9ffb9123b98-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/1ee3f7d73f0f856528d7573327c888f447c8ffd9-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/46daffbd10d489867cda5c6edc846e0cfaeaebfd-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/fd92b7193651a50139f0c0a41a0b162e63a8df80-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V - https://media.province-electric.com/326/xlsx_acuity/medium/62efd34bc024bc597e93344edb19ee9fed12438b-medium.png

Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V

Acuity Brands ECRM W M6 Emergency Exit Sign, 20.3125 Inch x 2 Inch x 8 Inch, LED, 120/347 V

MPN: ECRM W M6
UPC: 193048251746
PPN: LTH-ECRM W M6
UNSPSC: 39111707

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$99.18/ EA

Qty:

Loading add to cart quantity...

Features

UNIQUE FEATURE: High performing emergency combo unit with directional "running man" face plates
ENERGY SAVINGS: Excellent benefits of LED - energy savings, long life, and maintenance savings
COMPATILITY: Compatible with a variety of Lithonia Lighting® Emergency Remotes, see spec sheet for more details
LISTINGS: CSA certified to US and Canadian standards; CSA listed for damp location 10°C to 40°C (50°F to 104°F); Meets CSA C22.2 No. 141.15; Meets CSA C860. Meets UL 924, NFPA 101 (current Life Safety Code), NFPA 70-NEC, FCC Title 47, Part 15

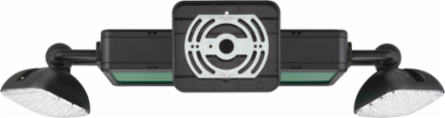

INSTALLATION: Universal top, end, or back mounting; easily removable mounting knockouts; J-box pattern on back panel; Housing snaps to canopy with four positive-locking tabs
HOURS OF LIFE: Long life energy efficient LED
DESIGN FEATURE BENEFIT: Ships standard with 2 right/left arrow (reversible) face plates, 2 pictogram only face plates, and a solid faceplate
BATTERY: Maintenance-free nickel-cadmium battery delivers a minimum of 90min of illumination
WARRANTY: Buy with confidence with a 5-year limited warranty
DIMENSIONS: Length 20.375in, Depth 2.125in, Height 8.75in

Specifications

Country of Origin: China

Color: White

Mounting: Surface

Fixture Type: Emergency Exit Sign

Lumens: 90 LM LM

Size: 20.3125x2x8

Voltage Rating120/347 V

Lamp TypeLED - Static

Environmental ConditionsIndoor, Outdoor

Housing ColorWhite

MaterialThermoplastic

TypeEmergency Exit Sign
