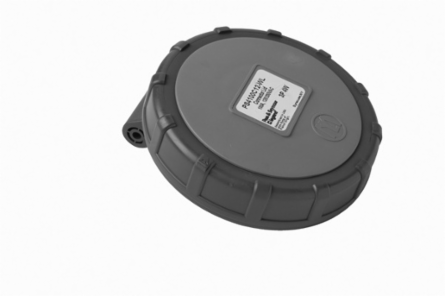

Pass & Seymour PS4100C5WL Watertight 100A Replacement Receptacle Cap, 4 Wire, 600V, Nylon Construction

MPN: PS4100C5WL
UPC: 785007012781
PPN: P-S-PS4100C5WL

$73.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Replacement Connector Lid, 4-Wire 100A 3-Phase 600V.

Features

Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
Nylon construction for highimpact and corrosion resistance.
Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
Natural-rubber grommets provide watertight protection at cable entry.
Combination-head screws for added convenience and quick installation.
Revolutionary, hinged cord grip for durable performance and ease of installation.
Cover with integral neoprene gasket provides watertight seal.

Documentation & Downloads

Specifications

Key Specifications

Depth	0.23 in
Height	5.3 in
Width	5.2 in
Country of Origin	United States
Standard	UL Listed
Indoor/Outdoor	Both
Warranty Type	1-Year
Type	Replacement Covers
Application Sector	Industrial

Product Line	Pass & Seymour
Flanged	No
Voltage	600.0 V
Amperage	100.0 A
Features	Watertight
Number of Wires	4.0
Number of Poles	3-Way
Connector Style	Pin & Sleeve
Special Features	Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
