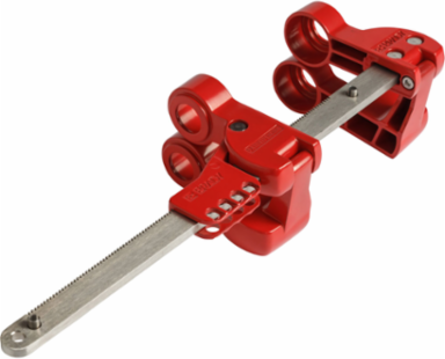

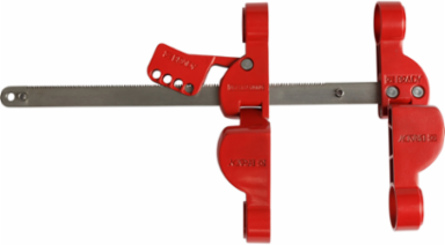

Brady 149228 Pipe Blind Flange Lockout Device, 14.75" H x 7" W
- MPN: 149228
- UPC: 754473599522
- PPN: BRD-149228
- UNSPSC: 39121909
CAD
$115.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

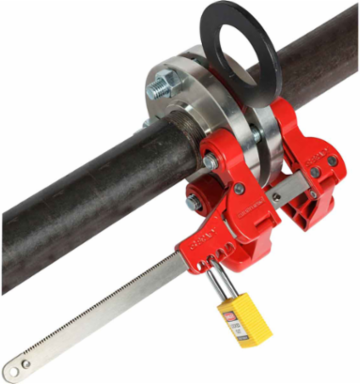

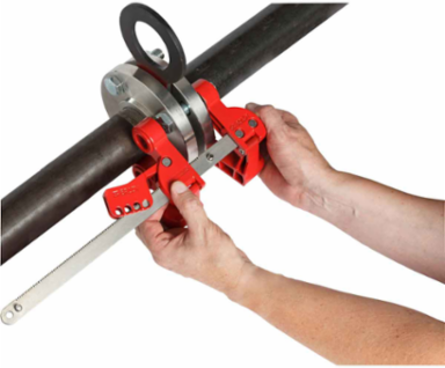

This pipe blind flange lockout device adds an extra level of security with an adjustable locking arm to help ensure that the pipe blind cannot be removed during maintenance.
Features
- Adjustable locking arm accommodates both standard and recessed bolt positions
- Secures 1 or 2 bolts for extra security
- Heavy duty construction withstands harsh environments
- UL approved for use in explosive atmospheres
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 29 CFR 1910.147
- Maximum Number of Padlocks
- 4
- Risk Type
- Mechanical Risk
- Trade Name
- Brady
- Brady Material Number
- LOTO-90
- Material
- Aluminum/Steel
- Dimensions (Metric)
- 70.00 mm W x 106.00 mm H x 371.00 mm L
- Lockout Height (in/ft/yd)
- 14.75 in
- Max Nut. Diameter
- 35.00 mm
- Maximum Service Temperature °F
- 194 °F
- Maximum Shackle Diameter (mm/cm/m)
- 7.00 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Recommended Nut Diameter
- 13.00 - 19.00 mm
- Service Temperature Range °F
- -40 °F to 194 °F
- Size - Width (mm)
- 70.00 mm
- Valve Wheel Diameter Range (in/ft/yd)
- 0.5 - 3 in
ColorRed
Gate Valve Lockout TypeTwo-Piece Adjustable
Primary Noun, Basic FunctionLockout Device
Total Qty per Pack1 Piece(s) / Pack
Adhesive (Y/N)No
Lockout MaterialAluminum; Steel
SAP B-NumberLOTO-90
Height (mm/cm/m)106.00 mm
Lockout Width (in/ft/yd)7 in
Maximum Service Temperature °C90 °C
Maximum Shackle Diameter (in/ft/yd).281 in
Minimum Service Temperature °C-40 °C
Minimum Shackle Clearance (in/ft/yd).75 in
Pipe Flange Thickness Range41.00 - 206.00 mm
Service Temperature Range °C-40 °C to 90 °C
Size - Length (mm)371.00 mm
Valve Wheel Diameter (mm/cm/m)13 - 76
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
