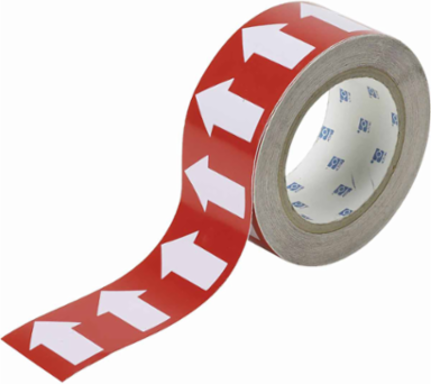

Brady 106168 Pipe Marking Tape, 2" W x 30 yd L x 0.006" D, White on Red
Brady 106168 Pipe Marking Tape, 2" W x 30 yd L x 0.006" D, White on Red
- MPN: 106168
- UPC: 754473039776
- PPN: BRD-106168
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$110.80/ EA
Description
B-302 is an indoor/outdoor high performance pressure sensitive safety sign, and is surface printed polyester with a polyester overlaminate.
Features
- B-302 is particularly suited for outdoor applications, and in harsh environments where excellent abrasion and chemical resistance is required
- Weathers up to 8 years outdoors, even longer indoors, and withstands wide temperature variations (up to 230°F)
- Flexible material conforms to most surfaces while protected graphics hold up to harsh environments, abrasion, and repeated spills and cleanings
- Permanent, pressure sensitive adhesive forms a long-lasting bond to even the most difficult surfaces and shapes
Specifications
Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- Cold; High Surface Energy
- Mounting Type
- Self-Adhesive
- Pre-Printed Areas on Label
- Arrows
- Printer and Label Applications
- General Identification; Safety
- Reflective Type
- Non-Reflective
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Label Properties
- Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Depth (mm/cm/m)
- 0.15 mm
- Dimensions (Metric)
- 0.15 mm D
- Length (in/ft/yd)
- 30 yd
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Service Temperature °C
- -40 °C
- Roll Width (in/ft/yd)
- 2 in
- Roll/Tape Length (in/ft/yd)
- 30 yd
- Roll/Tape Size (in/ft/yd)
- 2 in W x 30 yd L x 0.006 in D
- Thickness (in/ft/yd)
- 0.01 in
- Width (in/ft/yd)
- 2 in
Arrow DirectionLeft/Right
ColorWhite on Red
Enables Industry ComplianceANSI A13.1-2007
Pipe Marker Mounting StyleSelf-Adhesive
Primary Noun, Basic FunctionPipe Marking Tape
PSPA Photoluminescence ClassNot Illuminated
Self-Adhesive Pipe Marker FormatRoll Form, Continuous
Brady Material NumberB-302
Indoor or Outdoor UseOutdoor Use
MaterialPolyester with Polyester Overlaminate
SAP B-NumberB-302
Depth (in/ft/yd)0.006 in
Dimensions2 in W x 30 yd L x 0.006 in D
Dimensions 22 in W
Length (mm/cm/m)27.43 m
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F0 °F
Minimum Service Temperature °F-40 °F
Roll Width (mm/cm/m)50.8 mm
Roll/Tape Length (mm/cm/m)27.43 m
Roll/Tape Size (mm/cm/m)50.8 mm W x 27.43 m L
Thickness (mm/cm/m)0.254 mm
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
