Superstrut C749N 5/8 Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: C749N 5/8
- UPC: 616013217993
- PPN: T-B-C749N 5/8
CAD
$137.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

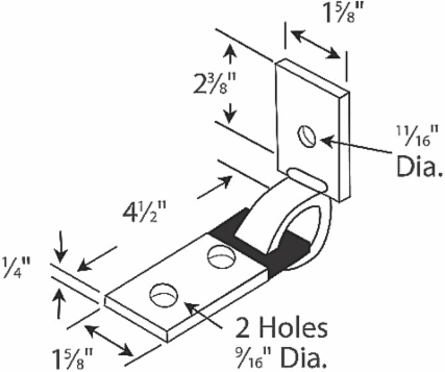

Brace, Seismic, Length 4-1/2 Inches, Height 2-3/8 Inches, Width 1-5/8 Inches, Hole Diameter 11/16 Inches, Load Safety Factor 1,650 Pounds, Steel
Features
- All braces have plasticol coating on the flat member which insulates against vibration noise transmission and eliminates rattle at the connection points
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121701 Electrical hangers
- Brand Name
- Superstrut
- Special Features
- All braces have plasticol coating on the flat member which insulates against vibration noise transmission and eliminates rattle at the connection points
- Material
- Steel
IGCC5026 Electrical hangers
TypePipe Straps, Pipe Clamps & Hangers (Series 700)

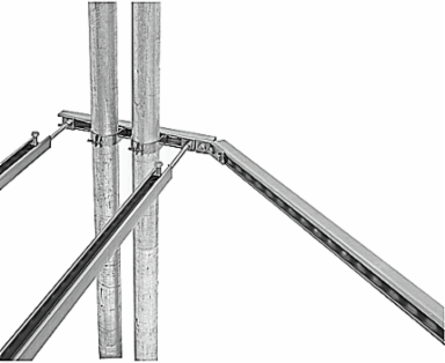

ApplicationFor use in seismic bracing applications
FinishGoldGalv/Standard
Packaging
- Outer Quantity
- 25
- Weight Uom
- 87.5 lbs. per 100
Outer Dimensions (inches)7.5x7.5x6.6
