Superstrut A716 1 3/4 SS Pipe Straps, Pipe Clamps & Hangers (Series 700)
Superstrut A716 1 3/4 SS Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: A716 1 3/4 SS
- PPN: T-B-A716 1 3/4 SS
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$60.95/ EA
Description

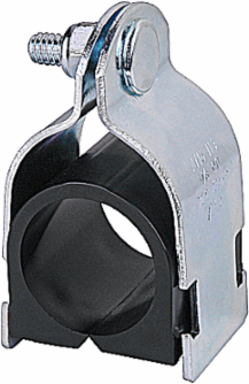

Clamp, Cushioned, Tube Series, Outer Diameter Tubing Size 1-3/4 Inch, Stainless Steel
Features
- Installation is easy and requires no more time than a simple pipe clamp installation.
- Cushion absorbs the shocks and associated vibrations from fluid surges in tubes, pipes and hoses.
- Can be used in temperatures from 300 degree F to -40 degree F.
- Snap-Guard Cushioned Clamp Assemblies are available individually bagged.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 31162905 Beam clamps
- Brand Name
- Superstrut
- Special Features

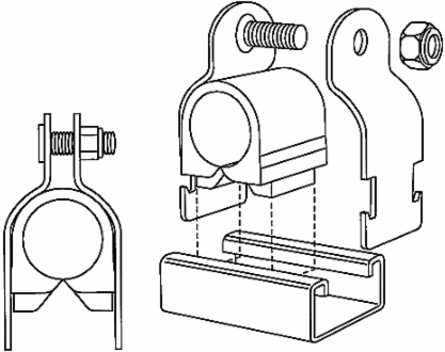

- Assembly includes steel clamp with bolt/locknut and cushion.
- Material
- Stainless Steel
IGCC3063 Beam clamps
TypePipe Straps, Pipe Clamps & Hangers (Series 700)
ApplicationTo secure pipes, tubes and hoses for fluid conductors.
Packaging
- Outer Quantity
- 10
- Weight Uom
- 37 lbs. per 100
Outer Dimensions (inches)9.1x7.1x4.5
European Specifications (ETIM)
- ETIM
- EC002470 Mounting clamp for cable protection tubes
- Rotatable
- N
MaterialStainless steel
