Superstrut C710 2 1/2EG Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: C710 2 1/2EG
- UPC: 616013004890
- PPN: T-B-C710 2 1/2EG
CAD
$8.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

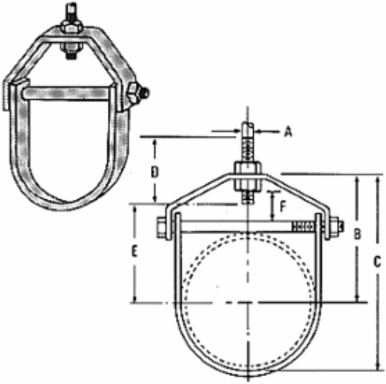

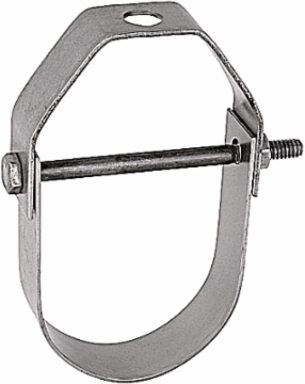

Hanger, Clevis, Pipe Size 2-1/2 Inch, Size of Steel Upper 3/8 Inch x 1-1/4 Inch Lower 3/16 Inch x 1-1/4 Inch, Electro-Galvanized Steel
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 31162412 Clevis
- Brand Name
- Superstrut
- Application
- Designed to support non-insulated, stationary lines from above allowing for approximately 1" to 1 1/2" of vertical adjustment after the pipe is in place. The lower nut (not furnished) adjusts the pipe line to the proper elevation, the top nut (not furnished) prevents loosening due to vibration, and must be tightened securely to assure proper hanger performance.
IGCC2999 Clevis
TypePipe Straps, Pipe Clamps & Hangers (Series 700)
MaterialSteel
Packaging
- Outer Quantity
- 25
- Weight Uom
- 83 lbs. per 100
Outer Dimensions (inches)9.1x9x12.7
European Specifications (ETIM)
- ETIM
- EC001171 Holder for protective hose
- Material quality
- Steel
- Colour
- Other
MaterialMetal
GalvanizedY
Type of fasteningStud bolt
