Superstrut P716 1 1/4 Pipe Straps, Pipe Clamps & Hangers (Series 700)
Superstrut P716 1 1/4 Pipe Straps, Pipe Clamps & Hangers (Series 700)
- MPN: P716 1 1/4
- PPN: T-B-P716 1 1/4
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$30.41/ EA
Description

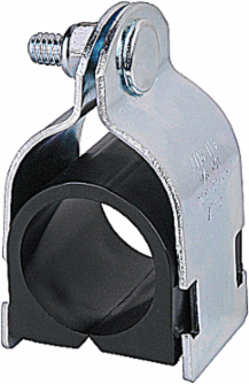

Clamp, Pipe Series, Nominal Pipe Size 1-1/4 Inch, Steel
Features
- Installation is easy and requires no more time than a simple pipe clamp installation.
- Cushion absorbs the shocks and associated vibrations from fluid surges in tubes, pipes and hoses.
- Can be used in temperatures from 300 degree F to -40 degree F.
- Snap-Guard Cushioned Clamp Assemblies are available individually bagged.
Specifications
Packaging
- Outer Quantity
- 10
- Weight Uom
- 40 lbs. per 100
Outer Dimensions (inches)7.5x7.5x7.5
European Specifications (ETIM)
- ETIM
- EC002470 Mounting clamp for cable protection tubes
- Rotatable
- N
MaterialSteel
North American Specifications (UNSPSC)
- UNSPSC
- 39121701 Electrical hangers
- Brand Name
- Superstrut
- Special Features

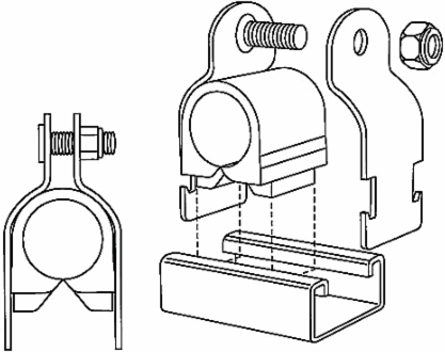

- Assembly includes steel clamp with bolt/locknut and cushion.
- Material
- Steel
IGCC5026 Electrical hangers
TypePipe Straps, Pipe Clamps & Hangers (Series 700)
ApplicationTo secure pipes, tubes and hoses for fluid conductors.
FinishGoldGalv/Standard
Downloads
