Hubbell Premise Wiring

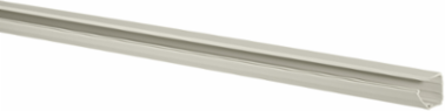

Hubbell Premise Wiring PL1ABC7 Non-Metallic Raceway 7 Foot Latching Adhesive Base and Cover

Non-Metallic Raceway 7 Foot Latching Adhesive Base and Cover
  • MPN: PL1ABC7
  • UPC: 783585090221
  • PPN: HBL-PL1ABC7
  • UNSPSC: 39131710

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$9.97/ EA

Description

Non-Metallic Raceway, Latching LANTRAK, Adhesive Base and Cover, 7' Length

Features

  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements
  • Standard

Specifications

Specifications

Country of Origin
United States
Industry Standard(s)
CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
Application
7' Base and Cover- Adhesive Back
Enclosure
NEMA 1 Rating
Length
7 ft
Special Features
Standard
Type
Base and Cover
Enclosure Type
NEMA 1 Rating
Description - Invoice
LANTRAK, ADHESIVE BS+CVR, 7'
Harmonization Code
3925900000
MSDS Flag
No
Construction
Extruded Plastic
Series
PL1
BOX SIZE
2.125x84.875x5.125 (in)
Carton - Number of Sub Packs
70
Carton - SCC-14 Next Lower Level Sub Pack
00783585090221
Case Weight
9.921 lb.
Each - Pack Description
Pack
Package Quantity
7 EA
ColorOffice White
PerformanceEnvironmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
Cover TypeIntegral
KnockoutsNone
Non Hazardous LocationNon Hazardous
StandardCSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
Width1.38 in
StyleSingle Channel, Latching
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberMT7ABC7;JPT705-ADH
MaterialThermoplastic
Base Unit of MeasureFT
Carton - Gross Weight per Pack14.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units70 EA
Each - Number of Sub Packs1
Package - Total Units7 EA

Certifications

EU RoHS Indicator
Yes
