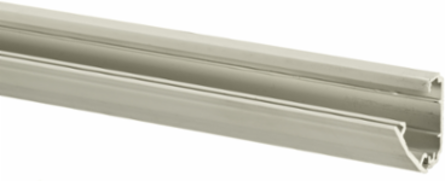

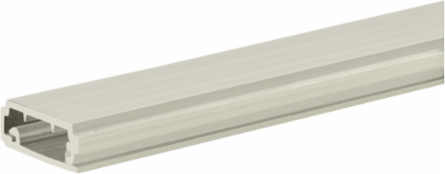

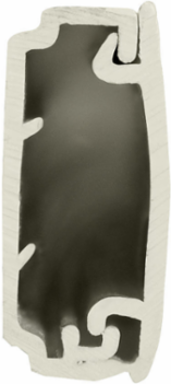

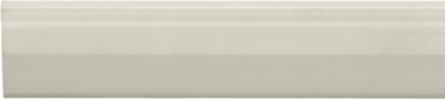

Hubbell Premise Wiring PW1ABC5 Non-Metallic RaceWay, 5 ft, Adhesive Base, Thermoplastic Material
- MPN: PW1ABC5
- UPC: 783585092027
- PPN: HBL-PW1ABC5
- UNSPSC: 39131710
CAD
$9.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Non-Metallic Raceway, Latching PremiseTrak, Wall-TRAK1,Adhesive Base, Cover, 5'
Features
- UL Listed and CSA Certified to 600 volts
- Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
- Application
- 5' Base and Cover- Adhesive Back
- Enclosure
- NEMA 1 Rating
- Non Hazardous Location
- Non Hazardous
- Standard
- CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
- Width
- 1.19 in
- Style
- Single Channel, Latching
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Construction
- Extruded Plastic
- Series
- PW1
- BOX SIZE
- 4.375x60.875x5.125 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585092027
- Each - Number of Sub Packs
- 1
- Package - Total Units
- 1 EA
- NAICS Code
- 3359323102
ColorOffice White
PerformanceEnvironmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
Cover TypeRemovable
Length5 ft
Special FeaturesStandard
TypeBase and Cover
Enclosure TypeNEMA 1 Rating
Description - InvoiceWALLTRAK1 ADHESIVE BC+CRV, 5'
Harmonization Code3925900000
MSDS FlagNo
MaterialThermoplastic
Base Unit of MeasureFT
Carton - Gross Weight per Pack18.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100 EA
Each - Pack DescriptionFeet
Package Quantity1 EA
