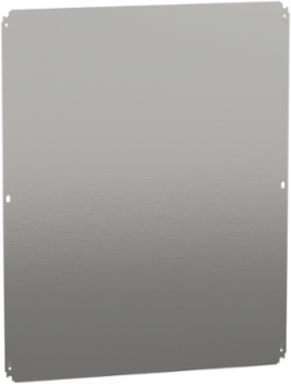

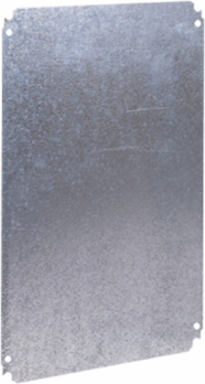

Schneider Electric NSYMM108 Galvanized Steel Mounting Plate 1000mm x 800mm, 150kg Load Capacity
- MPN: NSYMM108
- PPN: SCH-NSYMM108
CAD
$118.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 37.4 in
- Country of Origin
- Brazil, China, Spain, France, United States
Width29.53 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 800 mm W: 1000 mm, - H: 800 mm W: 1000 mm, - H: 800 mm W: 1000 mm, - H: 1000 mm W: 800 mm, - H: 1000 mm W: 800 mm, - H: 1000 mm W: 800 mm, - H: 800 mm W: 1000 mm, - H: 800 mm W: 1000 mm, - H: 800 mm W: 1000 mm, - H: 1000 mm W: 800 mm, - H: 1000 mm W: 800 mm
- Mounting Location
- direct fixing on backstuds, step slide
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 39 kg CO2 eq., 39.33460465203785
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 74 kg CO2 eq., 74.22327167639986
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- plain
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 141 kg CO2 eq.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 98
- Height Useful
- 950 mm
- Width Real
- 750 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Carbon Footprint Of The Distribution Phase [A4]27.397453033865006, 27 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.44908549533848, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialgalvanised steel
Permanent Permissible Load150 kg
Product Or Component Typemounting plate
RangePanelSeT
Software Versionv6.1
Thickness2.5 mm
Pep CodeENVPEP2202003EN
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal950 mm
Width Nominal750 mm
Accessory / Separate Part Categorymounting accessory
Package Weight(Lbs)13.800 kg
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint141.4044148576412
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
