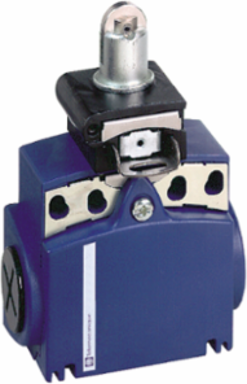

Telemecanique Sensors XCTR2502P16 Limit switch, Limit switches XC Standard, XCTR, steel roller plunger, 1NC+1 NO, slow, M16
- MPN: XCTR2502P16
- PPN: TES-XCTR2502P16
CAD
$91.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCTR, steel roller plunger, 1NC+1 NO, slow, M16
Documentation & Downloads
Specifications
Key Specifications
- Reset
- with
- Range Of Product
- Telemecanique Limit switches XC Standard
- Type Of Operator
- spring return roller plunger metal
- Cable Entry
- 2 entries tapped for M16 x 1.5 cable gland 4-8 mm
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Movement Of Operating Headlinear
Fixing Modeby the body
Sensor Designcompact
Product Or Component Typelimit switch
Materialplastic
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationslow-break, break before make
Device Short NameXCTR
Complementary
- Height
- 51-51 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Net Weight
- 0.125 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Maximum Actuation Speed
- 0.5 m/s
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)EN 60947-1 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force36 N
Contacts Insulation FormZb
Minimum Force For Tripping12 N
Width58 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
- Overvoltage Category
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsUL 508 || IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 14 || IEC 60204-1 || EN 60204-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
