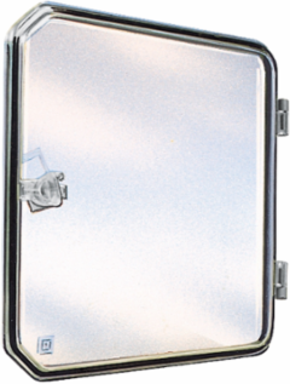

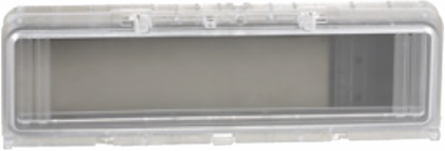

Schneider Electric NSYVA2724M Transparent Polycarbonate Window 196mm x 235mm x 13mm for Multi-Purpose Use
- MPN: NSYVA2724M
- PPN: SCH-NSYVA2724M
CAD
$24.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this transparent plastic window is an essential accessory for various Schneider Electric ranges, including Thalassa and PanelSeT models. Measuring 196mm in height, 235mm in width, and only 13mm in depth, it is perfectly suited for installation on doors or panels, providing a sleek and functional viewing option for multi-purpose applications. Crafted from robust transparent polycarbonate, this window not only enhances visibility but also features a lock without key mechanism, allowing for secure sealing. With a warranty of 18 months and compatibility with up to 24 modules, this window is an excellent choice for those looking to integrate a reliable and efficient viewing solution into their electrical installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 9.25 in
Height7.72 in
Depth13 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Location
- installation on door or panel
- Product Or Component Type
- window
- Returnability
- No
- Total Number Of 18 Mm Modules
- 24
- Accessory Separate Part Destination
- for modular device
- Pep Code
- ENVPEP1001004EN
- Height Useful
- 196 mm
- Width Real
- 235 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Lock Typelock without key, possibility to seal it
Local Publishable Date2026-04-13
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2047
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 complete window
MaterialTransparent polycarbonate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Accessory Separate Part Categoryinstallation accessory
Warranty In Months18
Height Nominal196 mm
Width Nominal235 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- window
ETIM
- ETIM 8
- EC002527
ETIM 9EC002527
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
