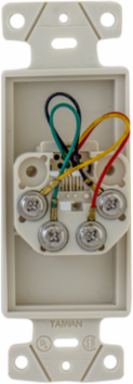

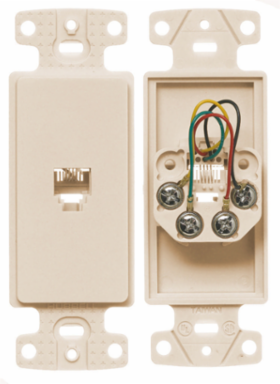

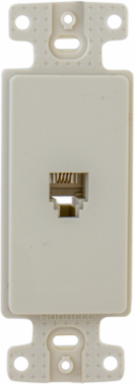

Bryant NS770LA 1-Gang Wall Plate with 6-Position 4-Conductor Jack, Light Almond, 4 Inch Width
- MPN: NS770LA
- UPC: 883778504136
- PPN: HBL-NS770LA
- UNSPSC: 39121444
CAD
$8.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Plates, 1-Gang Frame, With Jack, 6- Position 4-Conductor, Screw Terminal, Light Almond
Features
- Meets FCC part 68
- High impact-resistant thermoplastic frame
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Application
- Communications
- Contact Resistance
- Per TIA
- Special Features
- Standard Product
- Temperature Rating
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Connectivity
- Screw Terminals
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- High-Impact Thermoplastic (UL 94V-0)
- BOX SIZE
- 4.300x6.500x5.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778504136
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Width4.000 in
SizeStandard
ColorLight Almond/Office White
Insertion LossPer TIA
StandardUL Listed
TypeVoice and Data
Description - InvoicePLATE, FRAME,W/JK,6POS,4CON,S/TERM,LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight8.800 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
