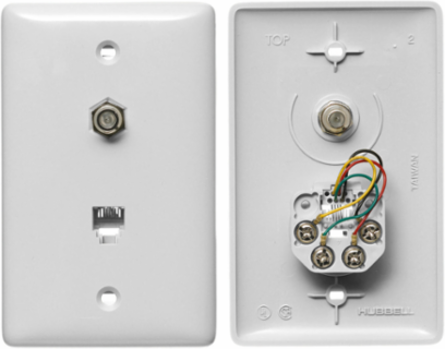

1-Gang Wall Plate with F Connector, 6-Position 4-Conductor, White
Bryant

Bryant NS747W 1-Gang Wall Plate with F Connector, 6-Position 4-Conductor, White

  • MPN: NS747W
  • UPC: 883778501623
  • PPN: HBL-NS747W
  • UNSPSC: 39121444

CAD

$6.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Plates, 1-Gang, With F Connector, Jack, 6-Position 4-Conductor, Screw Terminal, White

Features

  • Meets FCC part 68
  • Convenient screw down terminals
  • High impact-resistant thermoplastic plate
  • Standard Product

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
China
Industry Standard(s)
UL Listed
Application
Communications
Contact Resistance
Per TIA
Special Features
Standard Product
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Connectivity
Screw Terminals
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
HPWALL2
Material
Nylon
BOX SIZE
3.600x10.700x5.500 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
883778501623
Case - Total Units
100 EA
Each - Pack Description
Each
Pallet - GTIN - Package
70883778501622
Pallet Length
48.000 in
Pallet Width
40.000 in
Width2.870 in
SizeStandard
ColorWhite
Insertion LossPer TIA
StandardUL Listed
TypeVoice & CATV
Description - InvoicePLATE, 1GANG,W/F-CONN/6POS,4CON,S/TRM,WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.300 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight14.327 lb.
Lowest Level UOMEach
Pallet Height45.600 in
Pallet Weight480.600 lb.

Certifications

EU RoHS Indicator
Yes
