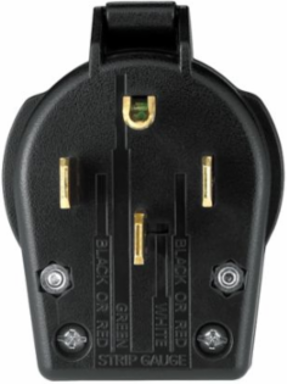

Eaton S21-SP Eaton Arrow Hart heavy-duty universal NEMA power plug — NEMA Configuration: 14-30P, 14-50P, Allowable Wire Size: #10-4 AWG, Voltage Rating: 125/250 V
- MPN: S21-SP
- UPC: 032664517839
- PPN: COW-S21-SP
CAD
$21.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Arrow Hart heavy-duty universal nema power plug ,#10-4 AWG,30A/50A,Commercial, range & dryer,125/250V,Back wire,Black,Brass,Durable thermoplastic,14-30P,14-50P,Three-pole,four-wire,grounding,Screw,1.13",Thermoplastic,Retail Box
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A/50 A |
|---|---|
| Allowable Wire Size | #10-4 AWG |
| Number of Wires | 4 |
| Device Type | Plug |
| Design Type | Straight blade |
| Material | Thermoplastic, Brass |
| Contact Material | Brass |
| Wiring Method | Back wire |
| Cord Range | 1.13 in |
| Product Height | 8.5 in |
| Product Weight | 0.455 lb |
| Color | Black |
| Voltage | 125/250 V |
|---|---|
| Number of Poles | Three-pole |
| NEMA Configuration | 14-30P, 14-50P |
| Type | Angled plug |
| Device Grade | Heavy-duty industrial specification grade |
| Face/Body Material | Durable thermoplastic |
| Connection Type | Screw |
| Torque Rating | 20 lbf-inch |
| Product Length/Depth | 2.63 in |
| Product Width | 6 in |
| Compliance | UL Listed |
| Application | Commercial, range and dryer |
