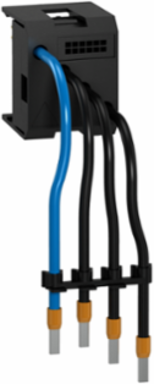

Schneider Electric AK5PC33 Linergy 3P Plug Outlet 32A, 2 Points, 4 mm2, 0.25 m Cable Length
- MPN: AK5PC33
- PPN: SCH-AK5PC33
- UNSPSC: 39121521
CAD
$43.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 4 mm², 0.25 m. The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping).
Features
- Removable power sockets
- The conventional free air thermal current is 32A
- Panel easily upgradable
- Multi-standard system of up to 160 A
- Compactness with mounting plate version
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 38 mm |
|---|
Physical Attributes
| Cable Length | 0.25 m |
|---|
Complementary Attributes
| Ui Rated Insulation Voltage | 600 V CSA, 600 V UL690 V IEC 60439-1 |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | DNV, LROS (Lloyds register of shipping), CSA, UL |
| Local Publishable Date | 2025-02-26 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Number Of Cables | 3 4-4 mm² |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | plug outlet |
| Range | Linergy |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 36 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 32 A |
| Silicone Free | Yes |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2527 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Number Of Points | 2 |
| Peak Current | 25 kA |
| Product Name | HK |
| Quantity Per Set | set of 6 |
| Range Of Product | AK5 |
| Sustainable Packaging | Yes |
| Height Nominal | 46 mm |
| I²T On Activation | 200000 A².s |
| Customs Code | 8544429090 |
| Halogen Free Status | Halogen free plastic parts product |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | plug outlet |
|---|
| Range Of Product | AK5 |
|---|
ETIM
| ETIM 8 | EC000008 |
|---|---|
| ETIM 10 | EC000008 |
| ETIM 9 | EC000008 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
