Schneider Electric AK5PC13 Linergy HK Plug Outlet 3P 16A 2 Points 2.5mm2 Cable 0.2m
- MPN: AK5PC13
- PPN: SCH-AK5PC13
CAD
$27.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

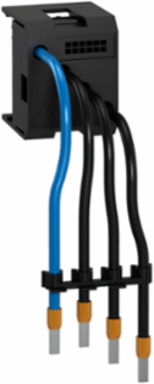

Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 2.5 mm². The conventional free air thermal current is 16A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping).
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth38 mm
Physical Attributes
- Cable Length
- 0.2 m
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- DNV, LROS (Lloyds register of shipping), UL, CSA
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2527
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Number Of Points
- 2
- Peak Current
- 25 kA
- Product Name
- HK
- Quantity Per Set
- set of 6
- Range Of Product
- AK5
- Sustainable Packaging
- Yes
- Height Nominal
- 46 mm
- [Ith] Conventional Free Air Thermal Current
- 16 A
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 44.000 g
- Take-back
- No
- Customs Code
- 8544429090
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
[Ui] Rated Insulation Voltage600 V CSA, 600 V UL690 V IEC 60439-1
Local Publishable Date2025-02-26
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Cables3 2.5-2.5 mm²
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeplug outlet
RangeLinergy
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal36 mm
I²T On Activation100000 A².s
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Silicon FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug outlet
Range Of ProductAK5
ETIM
- ETIM 8
- EC000008
ETIM 9EC000008
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
