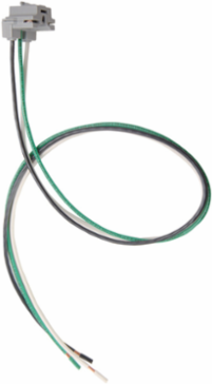

Pass & Seymour PTRA6STRB25 PlugTail® Right Angle Connector, 25 Inch, #12 AWG Stranded Copper
- MPN: PTRA6STRB25
- UPC: 785007044577
- PPN: P-S-PTRA6STRB25
CAD
$14.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® Right Angle Connector, 25 Inch, #12 AWG Stranded Copper
Features
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Available in any wire length up to 25 inches, use Configurable Solutions to order.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
- Length
- 25.0 in
- Special Features
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification.
- Product Line
- Pass & Seymour
- Features
- Plug-In
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Application Sector
- Commercial
- Wire Connection Type
- PlugTail
- Dielectric Strength
- Withstands 2000V minimum
Country of OriginMexico
ColorGray
TypeAccessory
Wire Size12 AWG
StandardcULus UL498
Is Tamper-ResistantYes
Connection LocationBack Only
Warranty Type1-Year Limited Warranty
Environmental ConditionsFlammability: UL94 V2
