Pass & Seymour PTRA6SOLBP PlugTail Connectors Right Angle, Solid, 6 Inch with IDEAL Connector
- MPN: PTRA6SOLBP
- UPC: 785007278248
- PPN: P-S-PTRA6SOLBP
CAD
$11.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

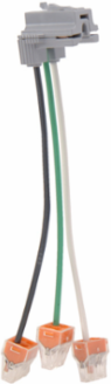

PlugTail Connectors Right Angle, Solid, 6 Inch with IDEAL Connector
Features
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Available in any wire length up to 25 inches, use Configurable Solutions to order.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
- Length
- 6.0 in
- Type
- Accessory
- Wire Size
- 12 AWG
- Standard
- cULus UL498
- Is Tamper-Resistant
- Yes
- Color
- Gray
- Product Line
- Pass & Seymour
- Connection Location
- Back Only
- Warranty Type
- 1-Year Limited Warranty
Country of OriginMexico
FeaturesPlug-In
Number of Wires3.0
Indoor/OutdoorIndoor
FeaturesIDEAL Connector
FinishMatte
Application SectorCommercial
Wire Connection TypePlugTail
Dielectric StrengthWithstands 2000V minimum

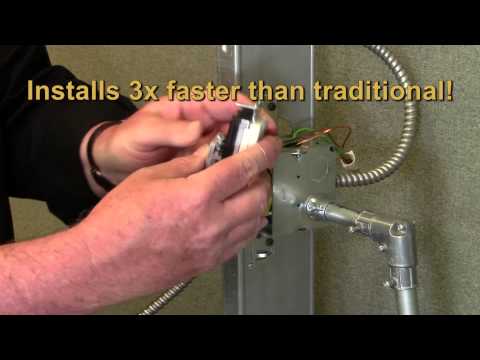

Loading video…
