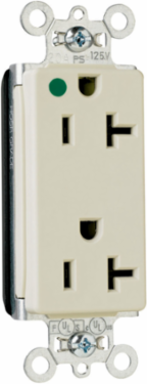

Pass & Seymour PT26362HGI PlugTail® 20A 125V Hospital-Grade Decorator Duplex Receptacle, Ivory, 2.75 Inch Height, 1.5 Inch Width, 0.625 Inch Depth
Pass & Seymour PT26362HGI PlugTail® 20A 125V Hospital-Grade Decorator Duplex Receptacle, Ivory, 2.75 Inch Height, 1.5 Inch Width, 0.625 Inch Depth
- MPN: PT26362HGI
- UPC: 785007309751
- PPN: P-S-PT26362HGI
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$44.98/ EA
Description
PlugTail® Decorator Hospital Grade Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger-safe application before, during and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger-safe housing.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Height
- 2.75 in
- Width
- 1.5 in
- Country of Origin
- Mexico
- Wire Size
- 12 AWG
- Number of Phases
- 3.0
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Healthcare
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Color
- Ivory
- Special Features
- Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
Amperage20.0 A
StandardUL 498
Voltage125.0 V
StandardFEDSPEC
Number of Wires3.0
Indoor/OutdoorIndoor
FeaturesDecorator Style
Outlet TypeHospital Grade
Application SectorCommercial
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Product LinePass & Seymour
