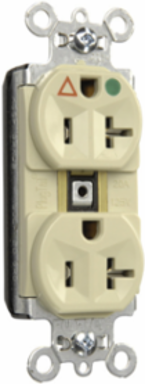

Pass & Seymour PTIG8300I PlugTail Isolated Ground Hospital Grade Receptacle 20A 125V Ivory 2.75 Inch Height
- MPN: PTIG8300I
- UPC: 785007278064
- PPN: P-S-PTIG8300I
CAD
$53.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail Isolated Ground Hospital Grade Receptacle 20A 125V Ivory 2.75 Inch Height
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.625 in
- Phase
- Three
- Width
- 1.5 in
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Color
- Ivory
- Application Sector
- Commercial
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Special Features
- Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
Height2.75 in
Amperage20.0 A
Country of OriginMexico
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
FeaturesIsolated Ground
Outlet TypeHospital Grade
Outlet TypeIsolated Ground
Product LinePass & Seymour
Application SectorHealthcare
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
FeaturesSingle Piece Plated Steel Mounting Strap
