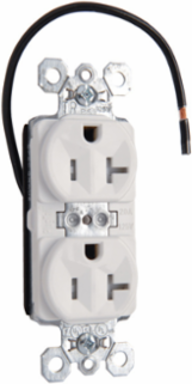

Pass & Seymour PTTR5362SCW PlugTail 20A Tamper-Resistant Receptacle, 125V, White, 2.75 Inch Height
- MPN: PTTR5362SCW
- UPC: 785007001693
- PPN: P-S-PTTR5362SCW
CAD
$31.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail 20A Tamper-Resistant Receptacle, 125V, White, 2.75 Inch Height
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.625 in
- Phase
- Three
- Amperage
- 20.0 A
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Features
- Split Circuit
- Is Tamper-Resistant
- Yes
- Outlet Type
- Straight Blade
- Outlet Type
- Tamper-Resistant
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Product Line
- Pass & Seymour
Height2.75 in
Width1.5 in
Country of OriginMexico
Voltage125.0 V
Number of Wires4.0
Wire Size14 - 10 AWG
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
ColorWhite
Special FeaturesDual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
