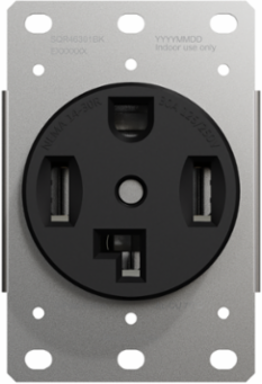

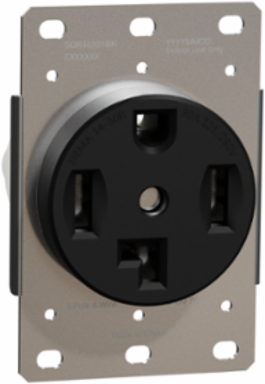

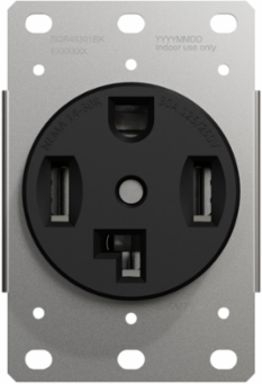

Schneider Electric SQR46301BK X Series 30A 125/250V Flush Mount NEMA 14-30R Dryer Outlet

MPN: SQR46301BK
UPC: 785901544449
PPN: SCH-SQR46301BK

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$14.23

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

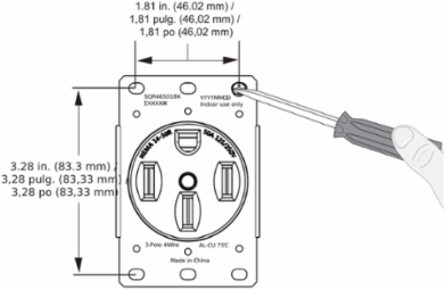

The Square D X Series 30A 125/250V Dryer Outlet provides a fast, safe way to upgrade your home's devices. This outlet socket has a 30A current rating. The rated operational voltage of this device is 125/250VAC. A heavy gauge steel mounting strap is ideal for corrosion resistance. It fits in either one or two gang boxes. This socket outlet has a black frame. Its Ue rated operational voltage is 125/250VAC. Its Ie rated operational current is 30A. By satisfying the NEMA 14-30R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Its mounting box can be recessed into the surface of the wall for flush mounting. The dimensions are (W) 64mm (2.52in) x (H) 95mm (3.74in) x (D) 57mm (2.24in). This device is black with matte surface finish. This device is compliant with NEMA 14-30R, UL 498 standard and cUlus certification.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

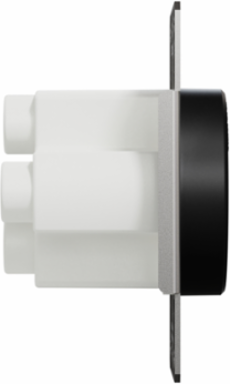

Depth	57 mm

Physical Attributes

Color	Black

Important Information Attributes

Number Of Gangs	1 gang, 2 gangs
Local Data Status	Publishable
Pre Comm Date	2020-03-11
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Persona Type Ids	LC
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Body Type	standard
Energy Efficiency Optimized	False
Material	plastic: strapmetal: fixing frame
Network Frequency	60 Hz
Number Of Modules	1
Outlet Standard	NEMA
Product Destination	dryer
Quantity Per Set	1 piece
Returnability	Yes
Surface Finish	Matte
Sustainable Packaging	Yes
Height Nominal	95 mm
Certificate Agency	cULus

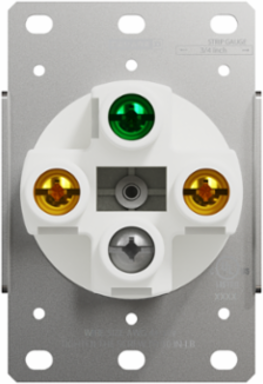

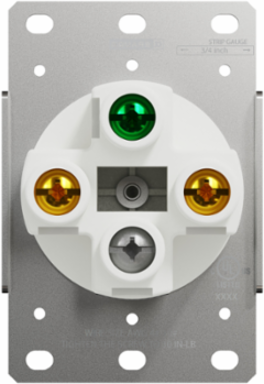

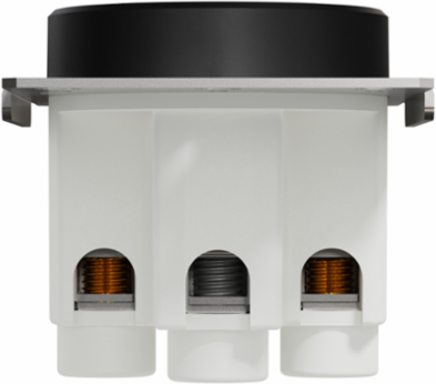

Connections - Terminals	phase and neutral 3 screw terminalearth 1 screw terminal
Package Weight(Lbs)	210 g
Warranty (In Months)	24

[Ue] Rated Operational Voltage	125 V, 250 V
Local Publishable Date	2026-06-23
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Persona Type Names	Contractor
Tier	1
Function Option	Standard
Market Segmentation	Residential
Aesthetic Name	X Series
Device Application	power supply
Market Segment	commercial
Mounting Mode	by screws
Network Type	AC
Outlet Poles Configuration	3P + E
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	socket-outlet
Range	Square D X Series
Socket Number	1
Surface Treatment	painted
Targeted Channel	distributor
Width Nominal	64 mm
[Ie] Rated Operational Current Ac	30 A
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536694020

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
