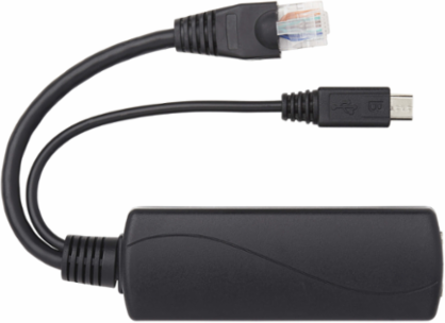

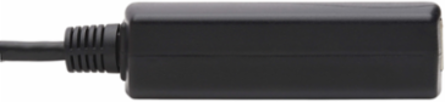

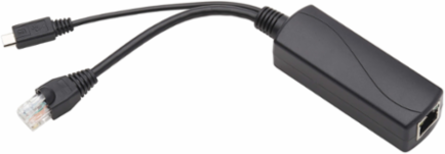

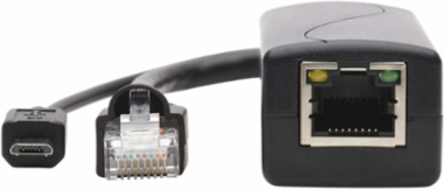

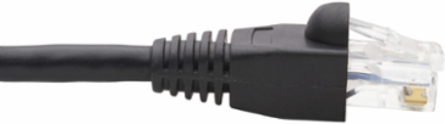

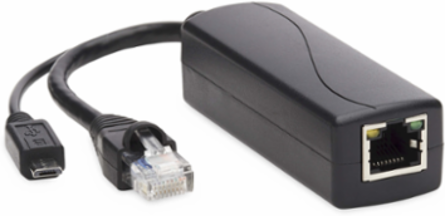

Tripp Lite NPOE-SPL-G-5VMU PoE to USB Micro-B & RJ45 Active Splitter, 48V to 5V 1A, 328 ft.

MPN: NPOE-SPL-G-5VMU
UPC: 037332242143
PPN: TRP-NPOE-SPL-G-5VMU

$33.30

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PoE to USB Micro-B & RJ45 Active Splitter, 48V to 5V 1A, 328 ft.

Features

Delivers power and data via Cat5e/6 cable up to 328 ft. to edge network equipment
Extends 5VDC power to any network device installed where no AC outlet is available
Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps (1 Gbps)
Designed for PoE devices like Wireless Access Points and security cameras
Quick and easy plug-and-play installation with no configuration necessary
3-year limited warranty
Split Your PoE Signal into Separate Power and Ethernet Connections for Edge Networks
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Simple Plug-and-Play Installation Has the Splitter Connected in Minutes

Documentation & Downloads

Specifications

Additional

Output Power	5W (5V/1A)
Operating Temperature Range	32 to 104 F (0 to 40 C)
Relative Humidity	0% to 90% RH, Non-Condensing
Weight	0.11 lbs (0.05 kg)
Side B Connector 1	RJ45 Male
Color	Black
Technology	Cat5/5e; Cat6; PoE

Network Speed	1 Gbps
Storage Temperature Range	5 to 122 F (-15 to 50 C)
Dimensions (HxWxD)	0.92 x 3.18 x 1.11 in
Side A Connector	RJ45 Female
Side B Connector 2	Micro-USB B Male
Certifications	CE, FCC, RoHS, REACH
IEEE Standards Supported	802.3af, 802.3at, 802.3, 802.3u, 802.3ab
