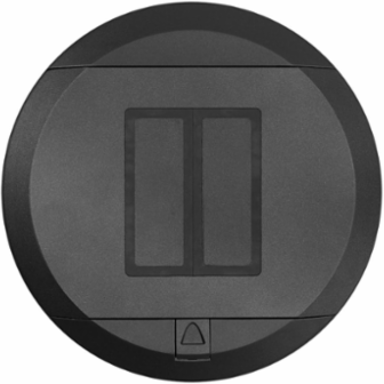

Leviton PT526-E Poke-Through Cover with 2 Door-In-Door Flip Lids, 8.38 Inch Diameter, Black
- MPN: PT526-E
- UPC: 078477381021
- PPN: LEV-PT526-E
CAD
$266.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

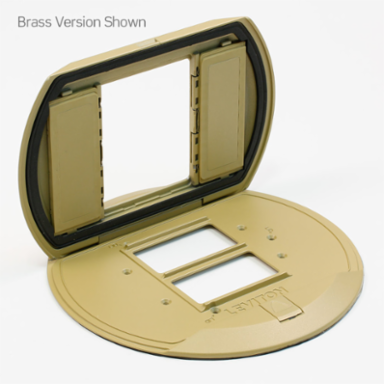

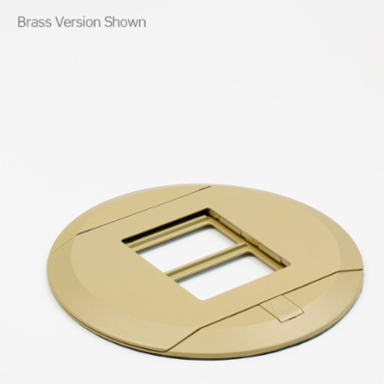

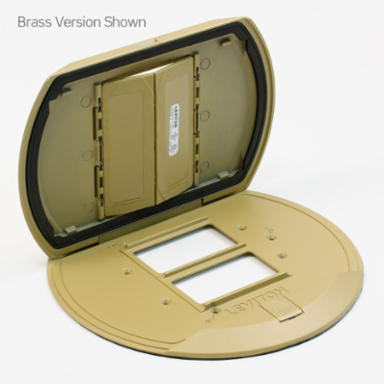

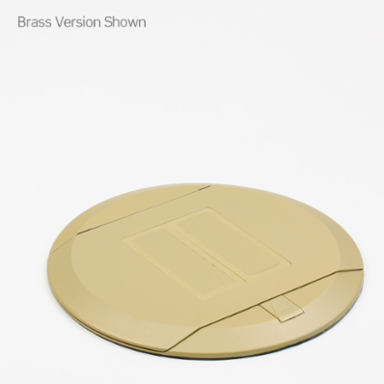

"Door-In-Door" Cover For Use With Leviton 5" Poke Through Floor Box (PT500) Only; Includes 2 Flip Lids That Fold Into The Main Lid To Hide All Hinges And Doors While In Use. Will Accommodate Decora-Style Receptacles And QuickPort Inserts; Also Includes Pre-Assembled Gasket And Mounting Screws, Black
Features
- Industry-exclusive design hides flip lids and allows the door to remain flush even when the outlets are in use; spring loaded button opens main lid
- Only three cover screws allow for easy installations and removals
- Accommodates standard Decora receptacles
- ADA-Compliant
- Available in nickel, brass, black or gray powder coat *Covers are sold separately from the PT500 system *Poke-Through covers come with low voltage divider
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | True |
|---|
Material Specifications
| Cover Material | Aluminum |
|---|
Mechanical Specifications
| Dimensions | 8.38” Diameter X 0.46" High |
|---|
Product Features
| Color | Black |
|---|---|
| Gasket | Pre-installed on Cover |
| Receptacle Compatibility | Any 2 standard Decora receptacles and QuickPort Inserts |
| Device Type | Cover |
|---|---|
| Openings | Flip Lid: Doors store inside cover |
| Type | Poke-Through |
Warranty
| Warranty | 2-Year Limited |
|---|
Environmental Specifications
| Duration Of Fire Protection | Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floors |
|---|
| Operating Temperature | -40°C to 70°C |
|---|
Standards & Certifications
| Applicable Standards | UL514A, UL263, CSA C22.2 No. 18.1 |
|---|---|
| UL File No. | E92327, R40253 |
| Certification/Listing | cULus |
|---|
