Hubbell ATS-00277 ATS-00277 (former catalog number ATS-14126P-S-L-CG-UBPTB-INTOO-46-4NP)
- MPN: ATS-00277
- UPC: 662620432762
- PPN: HBL-ATS-00277
CAD
$1663.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

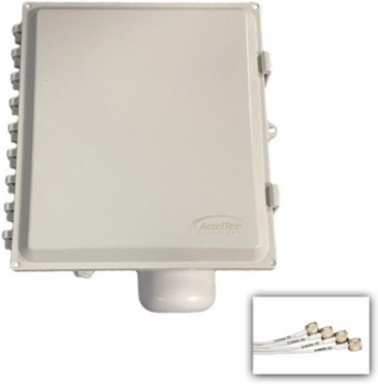

ATS-00277 (former catalog number ATS-14126P-S-L-CG-UBPTB-INTOO-46-4NP). The AccelTex Solutions integrated enclosure makes installations easy. The enclosure protects any enterprise-class AP from environmental threats and tampering. Purpose built for enterprise applications, this aesthetically pleasing enclosure is inconspicuous in an indoor application and comes pre-installed with an AccelTex omni antenna on the bottom of the enclosure.
Features
- Integrated polycarbonate enclosure with pre-installed omni antenna simplifies installations
- Protects APs from environmental threats in indoor and outdoor applications
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- Light Grey
- Enclosure Style
- Mounting Feet
- Length
- 14 in
- Ratings
- 122
- Width
- 12 in
- Compatibility
- Cisco MR76;Cisco MR86
- Impedance
- 50 Ohms
- Isolation Loss
- ˃20dB
- Operating Temperature
- -28 to 115 °C
- Freight Class Code
- 03928002
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Technology
- 802.11ac, 802.11ax, 802.11n, 802.3af, 802.3at
- BOX SIZE
- (in)
Cable TypeRG58
Dimensions14 in x 12 in x 6 in
Height6 in
Protection TypeDC Grounded
Voltage Ratio< 2.0:1
ApplicationIndoor Wi-Fi, Outdoor Wi-Fi
Frequency Rating2.4-2.5/4.9-5.85 GHz
Installation TypeUniversal Backplate and T-Bar
Lock TypeLatch
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A623
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00662620432762
