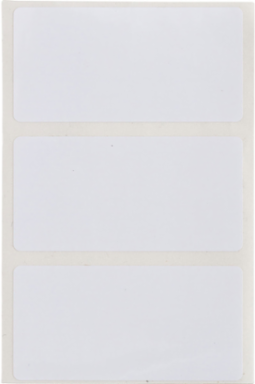

Brady THT-17-484-3 Permanent Polyester Labels 1 Inch x 2 Inch, Thermal Transfer Printable
- MPN: THT-17-484-3
- UPC: 662820623915
- PPN: BRD-THT-17-484-3
- UNSPSC: 55121612
CAD
$357.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permanent Polyester (B-484) material has excellent pliability and is designed for high adhesion to textured metals, low surface energy plastics and angled or curved surfaces.
Features
- Ideal for marking backer board, DIN rail, relays, PLCs, switches, solenoids, drive motors and other components inside panels
- Glossy white polyester with permanent rubber based adhesive is thermal transfer printable
- UL approved
- Service temperature of -40 to 248° F (-40 to 120° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Asset Tracking; Barcode Labeling; Component and Equipment Labeling; General Identification; Inventory and Inspection Labeling
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- Low Surface Energy
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R6000HF
- Suggested Ribbon Series
- R4400; R4900; R6000 Halogen Free
- Total Quantity
- 3000
- Adhesive Type
- Permanent Rubber Based
- Label Properties
- Aggressive Adhesive Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties
- Low Profile
- SAP B-Number
- B-484A
- Dimensions
- 1 in H x 2 in W
- Dimensions 2
- 1 in H x 2 in W
- Height (mm/cm/m)
- 25.40 mm
- Maximum Service Temperature °C
- 120 °C
- Minimum Service Temperature °C
- -40 °C
- Printable Area Dimensions (Metric)
- 25.4 mm H x 50.8 mm W
- Printable Area Width (mm/cm/m)
- 50.8 mm
- Size - Width (mm)
- 50.80 mm
- Thickness (mm/cm/m)
- 0.076 mm
- Vertical Repeat (mm)
- 28.58 mm
- Width (in/ft/yd)
- 2 in
Brand NameBrady®
ColorWhite
DiagramIcon 3 (triangle)
FinishGloss
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll3000
Recommended RibbonIP-R6000; R6000
ShapeRectangle
Total Qty per Pack3000 Label(s) / Roll
Trade NameToughBond
Brady Material NumberB-484A
MaterialPolyester
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)50.80 mm W x 25.40 mm H
Height (in/ft/yd)1 in
Label/Tape Size (in/ft/yd)1 in H x 2 in W
Maximum Service Temperature °F248 °F
Minimum Service Temperature °F-40 °F
Printable Area Height (mm/cm/m)25.4 mm
Sign Size-General1 in x 2 in
Thickness (in/ft/yd)0.003 in
Vertical Repeat1.125 in
Web Width (mm/cm/m)55.88 mm
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
