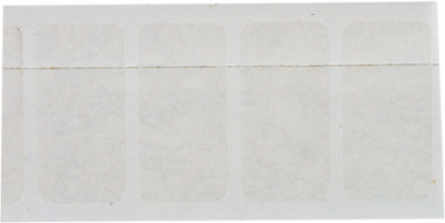

Brady LAM-5-103 Polyester Overlaminate Labels, 0.5" H x 1" W, Roll of 2000 Labels
Brady LAM-5-103 Polyester Overlaminate Labels, 0.5" H x 1" W, Roll of 2000 Labels
- MPN: LAM-5-103
- UPC: 662820161035
- PPN: BRD-LAM-5-103
- UNSPSC: 55121623
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$330.31/ EA
Description
This B-103 clear polyester material is a general purpose overlaminate that withstands high temperatures, dirt, oil and cleaning solvents while displaying excellent clarity.
Specifications
Specifications
- Applications
- Circuit Board Labeling
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 2000
- Shape
- Rectangle
- Total Quantity
- 2000
- Adhesive Type
- Permanent Acrylic
- Label Properties
- Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties
- Optically Clear; Overlaminate
- SAP B-Number
- B-103
- Dimensions (Metric)
- 25.40 mm W x 12.70 mm H
- Height (in/ft/yd)
- 0.5 in
- Horizontal Repeat (mm)
- 14.27 mm
- Maximum Service Temperature °C
- 130 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -70 °C
- Sign Size-General
- 0.5 in x 1 in
- Thickness (in/ft/yd)
- 0.0025 in
- Vertical Repeat
- 0.562 in
- Web Width (mm/cm/m)
- 30.50 mm
- Width (mm/cm/m)
- 25.4 mm
Brand NameBrady®
ColorClear
DiagramIcon 3 (triangle)
FinishGloss
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsGeneral Identification
Quantity per Row1
Total Qty per Pack2000 Label(s) / Roll
Adhesive (Y/N)Yes
Brady Material NumberB-103
MaterialPolyester Overlaminate
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.5 in H x 1 in W
Dimensions 20.5 in H x 1 in W
Height (mm/cm/m)12.70 mm
Label/Tape Size (in/ft/yd)0.5 in H x 1 in W
Maximum Service Temperature °F266 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-94 °F
Size - Width (mm)25.40 mm
Thickness (mm/cm/m)0.064 mm
Vertical Repeat (mm)14.27 mm
Width (in/ft/yd)1 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
