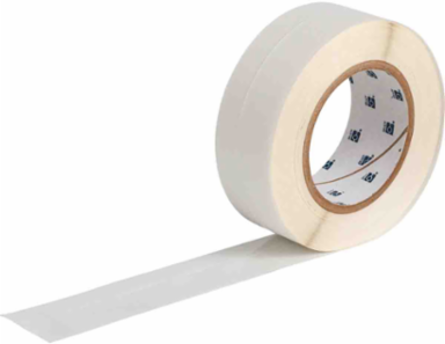

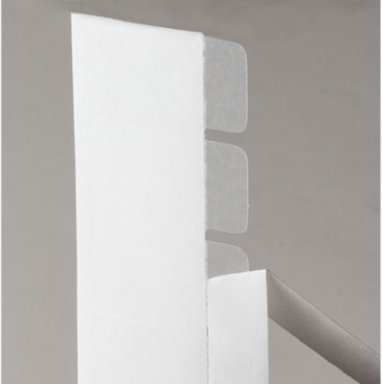

Brady LAM-6-103 Polyester Overlaminate Labels, 0.75" H x 1.5" W, Roll of 2000 Labels
- MPN: LAM-6-103
- UPC: 662820161042
- PPN: BRD-LAM-6-103
- UNSPSC: 55121623
CAD
$412.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This B-103 clear polyester material is a general purpose overlaminate that withstands high temperatures, dirt, oil and cleaning solvents while displaying excellent clarity.
Documentation & Downloads
Specifications
Key Specifications
| Applications | Circuit Board Labeling |
|---|---|
| Bulk Part | Not a Bulk Part |
| Compatible Surface Types | High Surface Energy |
| Enables Industry Compliance | ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155 |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Quantity per Roll | 2000 |
| Shape | Rectangle |
| Total Quantity | 2000 |
| Adhesive Type | Permanent Acrylic |
| Label Properties | Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels |
| Material Properties | Optically Clear; Overlaminate |
| SAP B-Number | B-103 |
| Dimensions (Metric) | 38.10 mm W x 19.05 mm H |
| Height (in/ft/yd) | 0.75 in |
| Horizontal Repeat (mm) | 20.62 mm |
| Maximum Service Temperature °C | 130 °C |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -70 °C |
| Sign Size-General | 0.75 in x 1.5 in |
| Thickness (in/ft/yd) | 0.0025 in |
| Vertical Repeat | 0.812 in |
| Web Width (mm/cm/m) | 43.18 mm |
| Width (mm/cm/m) | 38.1 mm |
| Brand Name | Brady® |
|---|---|
| Color | Clear |
| Diagram | Icon 3 (triangle) |
| Finish | Gloss |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | General Identification |
| Quantity per Row | 1 |
| Total Qty per Pack | 2000 Label(s) / Roll |
| Adhesive (Y/N) | Yes |
| Brady Material Number | B-103 |
| Material | Polyester Overlaminate |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| Dimensions | 0.75 in H x 1.5 in W |
| Dimensions 2 | 0.75 in H x 1.5 in W |
| Height (mm/cm/m) | 19.05 mm |
| Label/Tape Size (in/ft/yd) | 0.75 in H x 1.5 in W |
| Maximum Service Temperature °F | 266 °F |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -94 °F |
| Size - Width (mm) | 38.10 mm |
| Thickness (mm/cm/m) | 0.064 mm |
| Vertical Repeat (mm) | 20.62 mm |
| Width (in/ft/yd) | 1.5 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
