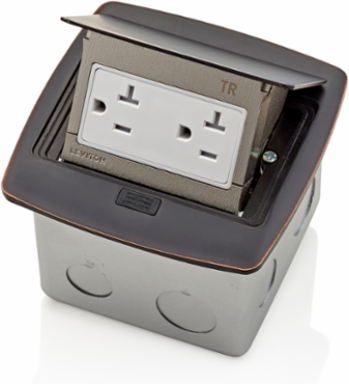

Leviton PFTR2-BZ Pop-Up Floor Box 20 Amp Tamper-Resistant Outlet, Bronze - NEMA 5-20R, IP 44 Rated
- MPN: PFTR2-BZ
- UPC: 078477950609
- PPN: LEV-PFTR2-BZ
CAD
$125.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pop-Up Floor Box with 20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet that is pre-wired to terminal block - Bronze
Features
- TIME SAVING INSTALLATION - Terminal block is pre-wired for easy access, just insert the wires and tighten the screws

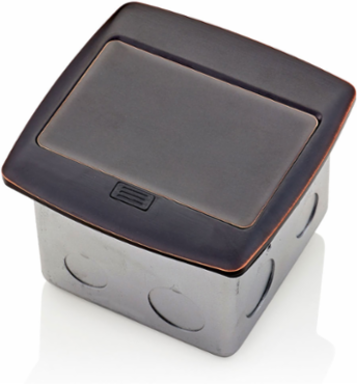

- CONVENIENT – Low profile, stylish metal cover recesses into the floor when not in use reducing above floor height to ¼ inch. Press button to access
- PROTECTION – Meets or exceeds UL 514A including scrub water test. IP 44 rated protection from ingress water spray from any direction when closed
- VERSATILE – Can be used with a variety of flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Standards and Certification
- Applicable Standards
- Conforms to UL STD 514A, Certified to CSA STD 22.2 No. 18.1, IP 44, NOM ANCE*
Certification/ListingcETLus
Mechanical Specification
- Terminal Accom.
- 12-14 AWG
TerminationTerminal Block
Electrical Specification
- Amperage
- 20 A
- Pole
- 2
- Wire
- 3
NEMA5-20R
Voltage125 VAC
Product Features
- Color
- Bronze
- Warranty
- 2-Year Limited
TypeTamper-Resistant Outlet
Material Specification
- Box Material
- Coated Steel
Mounting and Assembly ScrewsPlated Steel
