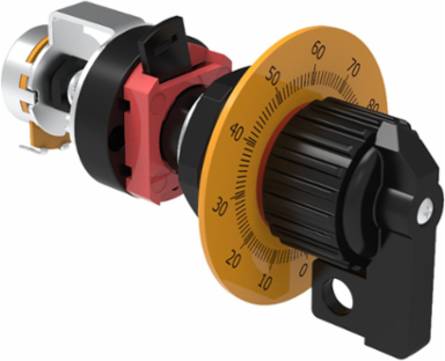

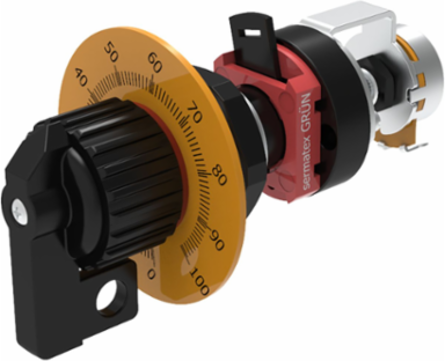

Killark GZ133-4K7 Potentiometer Single Turn 4.7K Ohm 25mm 3/4 Inch NPSM Class I, Div I & II
- MPN: GZ133-4K7
- UPC: 783936178240
- PPN: HBL-GZ133-4K7
CAD
$628.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Potentiometer, Single Turn 4.7K Ohm Short Length 25mm, 3/4 NPSM
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread and M22x1.5 on request.
- Control operators can be grouped into a single assembly thus reducing installation time and cost.
- Killark GZ SERIES Operators are for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
Specifications
Key Specifications
| Country of Origin | Brazil |
|---|---|
| Dimensions | 4.6 in x 1.8 in x 1.9 in |
| Height | 1.9 in |
| Weight | 0.30 lb. |
| Engineering Drawing 1 Display Text | GZ Series Dimensional Drawings |
| Frequency Rating | 50/60 Hz |
| Type | Potentiometer |
| ARRA Compliant | Contact Manufacturer |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | R |
| Sub Class Code | D25D250 |
| UL File Number | E12379 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936178240 |
| Color | Black |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22;II 2 G Ex db IIC/IIB+H2Gb;II 2 D Ex tb IIIC Db |
| Length | 4.6 in |
| Width | 1.8 in |
| Action | Rotary |
| Nema Rating | Type 4X |
| Wattage | 0.25 W |
| Class Code | D25 |
| Harmonization Code | 8533408070 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Series | GZ Series |
| BOX SIZE | (in) |
| NAICS Code | 3359326103 |
