Schneider Electric

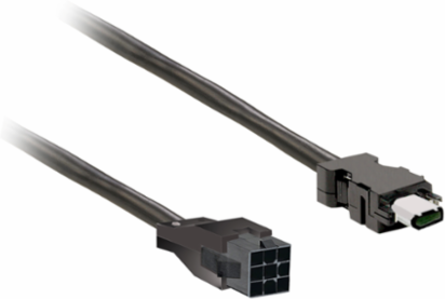

Schneider Electric VW3M5D1AR15 power cable 1,5m shielded 4x 0,82mm², BCH2 leads connection

power cable 1,5m shielded 4x 0,82mm², BCH2 leads connection
  • MPN: VW3M5D1AR15
  • PPN: SCH-VW3M5D1AR15

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$80.91/ EA

Description

power cable 1,5m shielded 4x 0,82mm², BCH2 leads connection

Specifications

Specifications

Range Of Product
Lexium 28
Cable Length
1.5 m
Range Compatibility
Lexium 28
Accessory / Separate Part Type
preassembled power cordset
Product Compatibilityservo motor BCH2 50 W 40 mm) without brake) || servo motor BCH2 100 W 40 mm) without brake) || servo motor BCH2 200 W 60 mm) without brake) || servo motor BCH2 400 W 60 mm) without brake) || servo motor BCH2 400 W 80 mm) without brake) || servo motor BCH2 750 W 80 mm) without brake)
Accessory / Separate Part Categoryconnection accessory
Product Or Component Typepower cable
Accessory / Separate Part Destinationbetween servo motor and servo drive

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Electrical Connection
free end servo drive side || connector - Molex 4-pin servo motor side
Awg Gauge
4 x AWG 18
Net Weight0.2 kg
