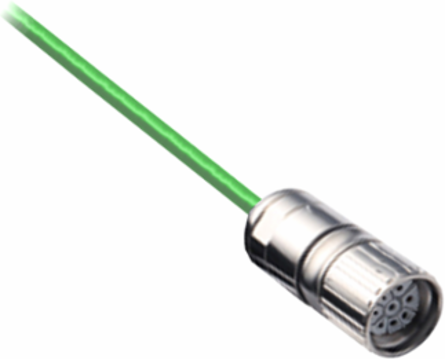

Schneider Electric VW3E1143R250 Power Cable 25 Meter for Axis 1 with M23 Connector, 1.5mm2, 6.307kg
- MPN: VW3E1143R250
- PPN: SCH-VW3E1143R250
- UNSPSC: 26121629
CAD
$764.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Lexium 52 & Motors range, an offer of connection accessories for power supply. This power cable is an accessory for Axis 1 STS40/60/80. The length of this cable is 25m. It is furnished with M23 industrial connector for electrical connection. The cable composition is 1.5mm². The connector is made of metal. It weighs 6.307kg. This range is compatible with Lexium 52, Lexium 62 and Lexium STS. The product is compatible with LXM 62 servo drive, LXM 52 servo drive, SH3055.P and SH3070.P/M. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Features
- Fully compatible with LXM 62 distribution boxes and LXM 62 ILM integrated drives
- Ensures signal integrity and electromagnetic protection, critical for high-performance motion control
- Designed for easy mounting and cabling
- Controls Lexium 62 ILM servo modules via SERCOS for fast, synchronized multi-axis motion
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, Hungary |
|---|
| Weight | 6307 g |
|---|
Physical Attributes
| Cable Length | 25 m |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Accessory / Separate Part Destination | holding brake, temperature sensor, power supply |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 12 kg CO2 eq., 12.322651864003635 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 37 kg CO2 eq., 37.205198760866466 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Cable Cross Section | 1.5-1.5 mm² |
| Material | metal |
| Product Or Component Type | power cable |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Accessory / Separate Part Category | connection accessories |
| Customs Code | 8544429090 |
| Packaging Weight In G | 630.7 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.8579541331071924, 0.9 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.03302243832140621, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Connector Type | M23 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 50 kg CO2 eq. |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To transmit energy over a distance of 5 meter during 10 years at a 100% use rateTo transmit energy over a distance of 5 meter during 10 years at a 100% use rate |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 21 |
Environment Attributes Main
| Product Compatibility | LXM 62 servo drive, LXM 52 servo drive, SH3055.P..., SH3070.P/M..., SH3100.P/M..., SH31401M..., MH3070.P..., MH3100.P... |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1409020EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1409020_V3 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 50.41882719629869 |
| Environmental Disclosure | ENVPEP1409020_V3 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-12 |
| Psr Version | PSR-0001-ed4-EN-2022 11 16 |
General Attributes
| Product Or Component Type | power cable |
|---|
| Range Of Product | PacDrive 3 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|---|
| ETIM 10 | EC002584 |
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
