Schneider Electric

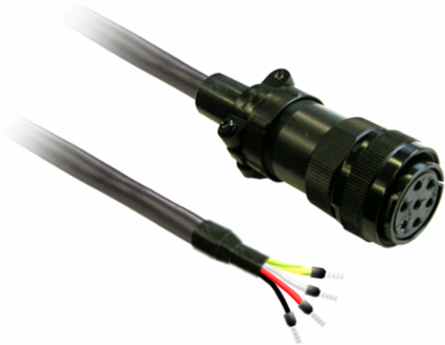

Schneider Electric VW3M5D2AR30 power cable 3m shielded 4x 1,3mm², BCH2 MIL connector

power cable 3m shielded 4x 1,3mm², BCH2 MIL connector
  • MPN: VW3M5D2AR30
  • PPN: SCH-VW3M5D2AR30

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$188.46/ EA

Description

power cable 3m shielded 4x 1,3mm², BCH2 MIL connector

Specifications

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Specifications

Range Of Product
Lexium 28
Cable Length
3 m
Range Compatibility
Lexium 28
Accessory / Separate Part Type
preassembled power cordset
Product Compatibilityservo motor BCH2 1000 W 100 mm) without brake) || servo motor BCH2 2000 W 100 mm) without brake) || servo motor BCH2 300 W 130 mm) without brake) || servo motor BCH2 500 W 130 mm) without brake) || servo motor BCH2 600 W 130 mm) without brake) || servo motor BCH2 850 W 130 mm) without brake) || servo motor BCH2 900 W 130 mm) without brake) || servo motor BCH2 1000 W 130 mm) without brake) || servo motor BCH2 1500 W 130 mm) without brake) || servo motor BCH2 2000 W 130 mm) without brake)
Accessory / Separate Part Categoryconnection accessory
Product Or Component Typepower cable
Accessory / Separate Part Destinationbetween servo motor and servo drive

Complementary

Electrical Connection
free end servo drive side || connector - MIL small servo motor side
Awg Gauge
4 x AWG 16
Net Weight0.45 kg
