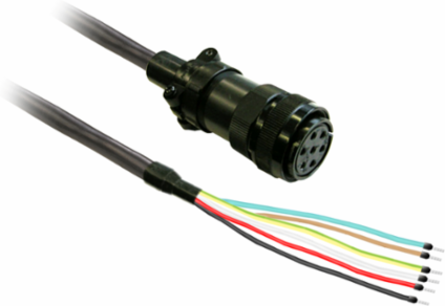

Schneider Electric VW3M5D2FR50 5 Meter Shielded Power Cable with BCH2 Brake MIL Connector, AWG 16

MPN: VW3M5D2FR50
PPN: SCH-VW3M5D2FR50

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$402.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This 5-meter shielded power cable from Schneider Electric is designed for reliable performance in automation and motion control applications. Featuring a BCH2 brake MIL connector and constructed with AWG 16 wiring, it ensures effective transmission of power while minimizing interference. Ideal for integrating various components within control systems, this cable is a crucial element for achieving seamless operation in demanding environments. With its robust build and precise engineering, it meets the needs of professionals seeking dependable connectivity solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Switzerland, Czechia, France, Sweden, Tunisia

Physical Attributes

Cable Length	5 m

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electrical Connection	free end servo drive side, connector - MIL small servo motor side
Local Publishable Date	2026-01-12
Stocking Flag	Y
Serviceability	No
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium 28
Sustainable Packaging	No
Accessory / Separate Part Destination	between servo motor and servo drive
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8544429090

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Traceability	No
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Awg Gauge	6 x 16 AWG
Product Or Component Type	power cable
Returnability	No
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Type	preassembled power cordset
Package Weight(Lbs)	1.08 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Product Compatibility	servo motor BCH2 1000 W 130 mm) with brake)servo motor BCH2 2000 W 130 mm) with brake)servo motor BCH2 1000 W 100 mm) with brake), servo motor BCH2 2000 W 100 mm) with brake)servo motor BCH2 300 W 130 mm) with brake), servo motor BCH2 500 W 130 mm) with brake), servo motor BCH2 600 W 130 mm) with brake), servo motor BCH2 850 W 130 mm) with brake), servo motor BCH2 900 W 130 mm) with brake), servo motor BCH2 1500 W 130 mm) with brake)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
