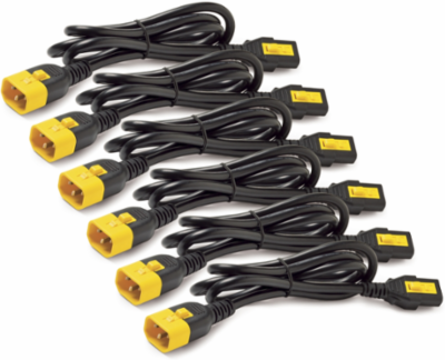

APC AP8702S-NA NetShelter Power Cord Kit, Locking C13 to C14, 2 Ft, CSA/UL Listed
- MPN: AP8702S-NA
- UPC: 731304294368
- PPN: APC-AP8702S-NA
CAD
$128.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AP8702S-NA is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 2ft (0.6m), IEC 60320 C14 as input and IEC 60320 C13 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Features
- Locking IEC receptacle to reduce risk of accidental disconnections
- Universal fit in any IEC receptacles
- Output jumpers in multiple lengths and configurations
- Exclusive locking feature for APC AP8000 range of Rack PDUs
- Multi region approved with regional input sockets
Documentation & Downloads
Specifications
Additional
| Max Line Current | 10 A |
|---|---|
| Maximum Total Current Draw per Phase | 10 A |
| Input Connection Type | IEC 60320 C14 |
| Height | 9.45 in (24 cm) |
| Depth | 1.57 in (4 cm) |
| Material | Lead Free |
| RoHS | Compliant |
| REACH | Free of SVHC |
| Storage Ambient Temperature Range | -13 to 221 6F (-25 to 105 6C) |
| Storage Relative Humidity | 20 to 80 % |
| Storage Altitude | 0 to 50,000 ft (0 to 15,240 m) |
| Product Orientation | No preference |
| Input Current Limit | 10 A |
|---|---|
| Cord Length | 2 ft (0.61 m) |
| Output Connection Type | IEC 60320 C13 |
| Width | 2.76 in (7 cm) |
| Weight | 1.54 lb (0.7 kg) |
| Approvals | CSA, UL Listed |
| California Proposition 65 | Prop 65 Warning (DINP) |
| Operating Ambient Temperature Range | 32 to 221 6F (0 to 105 6C) |
| Operating Relative Humidity | 20 to 80 % |
| Operating Altitude | 0 to 10,000 ft |
| Color | Black |
