Schneider Electric VW3M5501R100 Power Cordset 10 Meter 4 x 1.5 mm2 + 2 x 1 mm2 + 2 x 0.14 mm2
- MPN: VW3M5501R100
- PPN: SCH-VW3M5501R100
CAD
$317.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

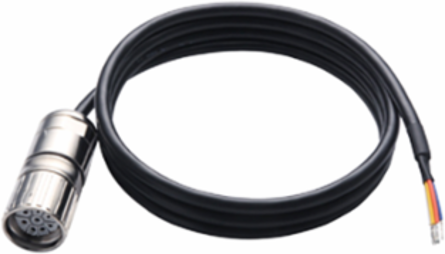

This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 10 meters shielded cable.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
Physical Attributes
| Cable Length | 10 m |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.3503290635, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0013784106, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 309 kg CO2 eq., 309.02 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Use Carbon Footprint | 309.02 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1112048EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Cable Composition | 4 x 1.5 mm² + 2 x 1 mm² + 2 x 0.14 mm² |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Type Of Cable | shielded cable |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | to transmit energy over a distance of 1 meter during 10 years at a 50% use rate |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 630.72 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Accessory / Separate Part Destination | between synchronous motor and variable speed drive |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6] | 1.289 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 3507.6 |
| Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 0.1611 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 1152.15 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 6172 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 5387 |
| Water Pollution (M3) Operational Energy Use [B6] | 12751.5 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3 kg CO2 eq., 2.5756361149 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 15 kg CO2 eq., 15.1670439 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 1 connector M23 8 synchronous motor side1 free end variable speed drive side |
| Range Of Product | Altivar |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 327 kg CO2 eq. |
| Pep Code | ENVPEP1112048EN |
| Pep Verification Date | 2020-09-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | power cable |
| Package Weight(Lbs) | 2.730 kg |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Operational Energy Use [B6] | 13300 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 309.02 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 1120.45 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 5387 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 784.8 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 784.8 |
| Customs Code | 8544429090 |
Environment Attributes Main
| Product Compatibility | synchronous motor BMP 140 mm, 1 F, synchronous motor BMP 140 mm, 2 Csynchronous motor BMP 70 mm, 1 F, synchronous motor BMP 70 mm, 2 R, synchronous motor BMP 70 mm, 2 F, synchronous motor BMP 100 mm, 1 R, synchronous motor BMP 100 mm, 1 Fsynchronous motor BMP 140 mm, 1 C, synchronous motor BMP 100 mm, 2 R, synchronous motor BMP 100 mm, 2 F, synchronous motor BMP 70 mm, 1 R |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1112048EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-09-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 327.1143874891 |
| Environmental Disclosure | ENVPEP1112048EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1112048EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC001576 |
|---|
| ETIM 9 | EC001576 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
